Zenith

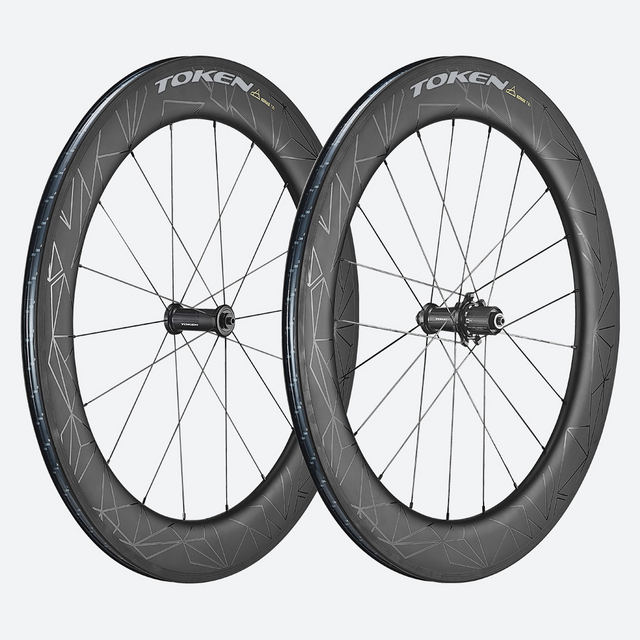

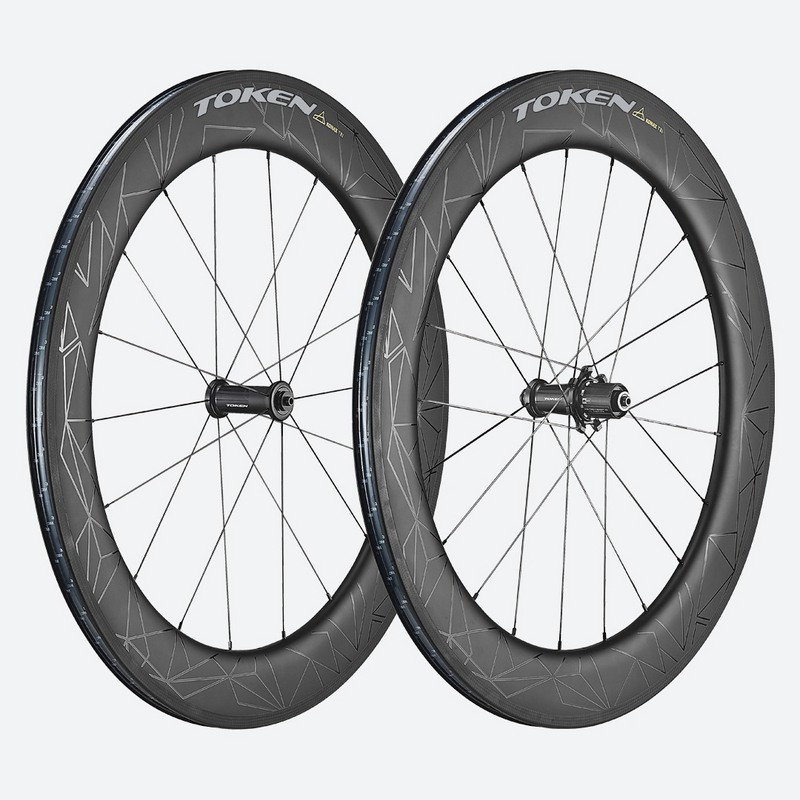

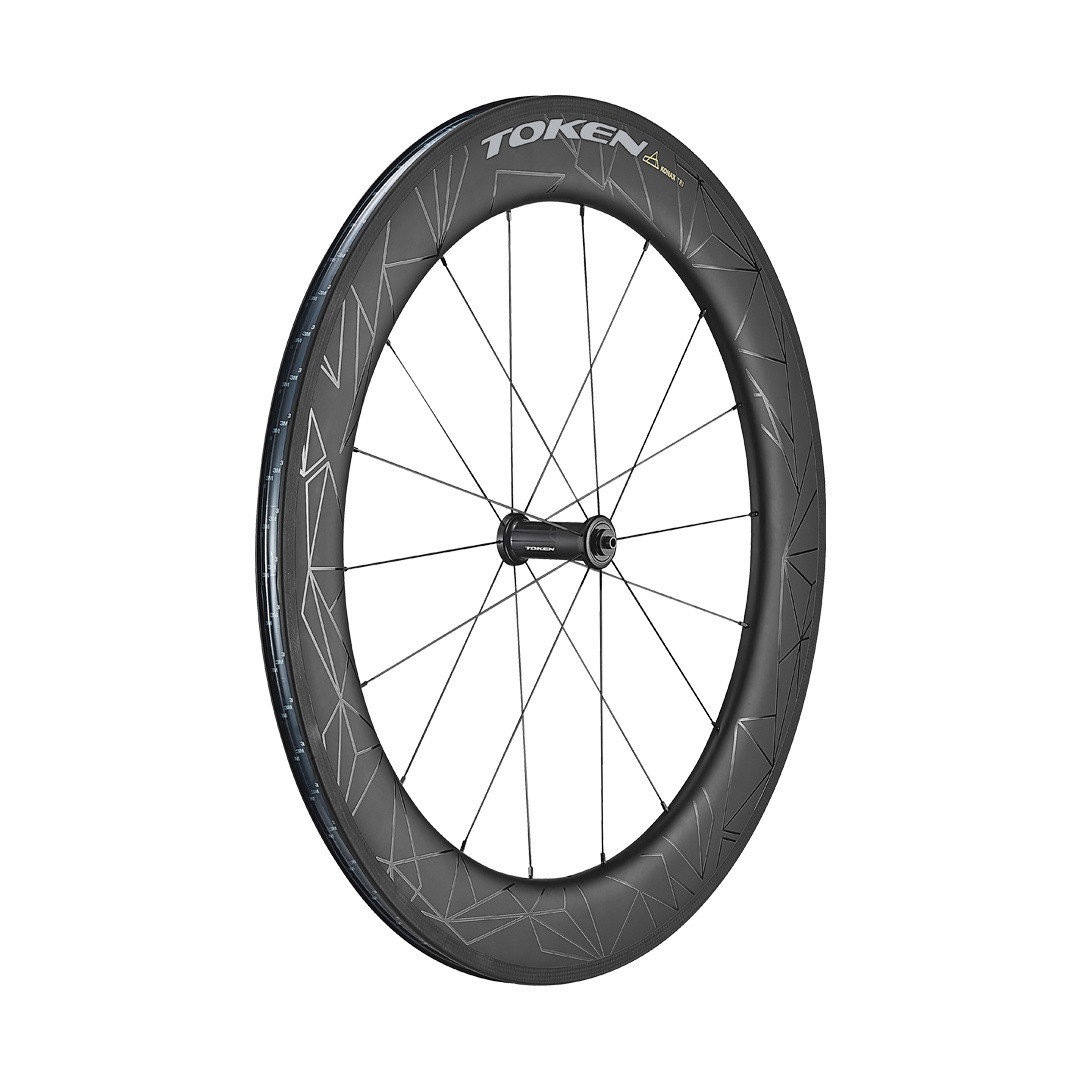

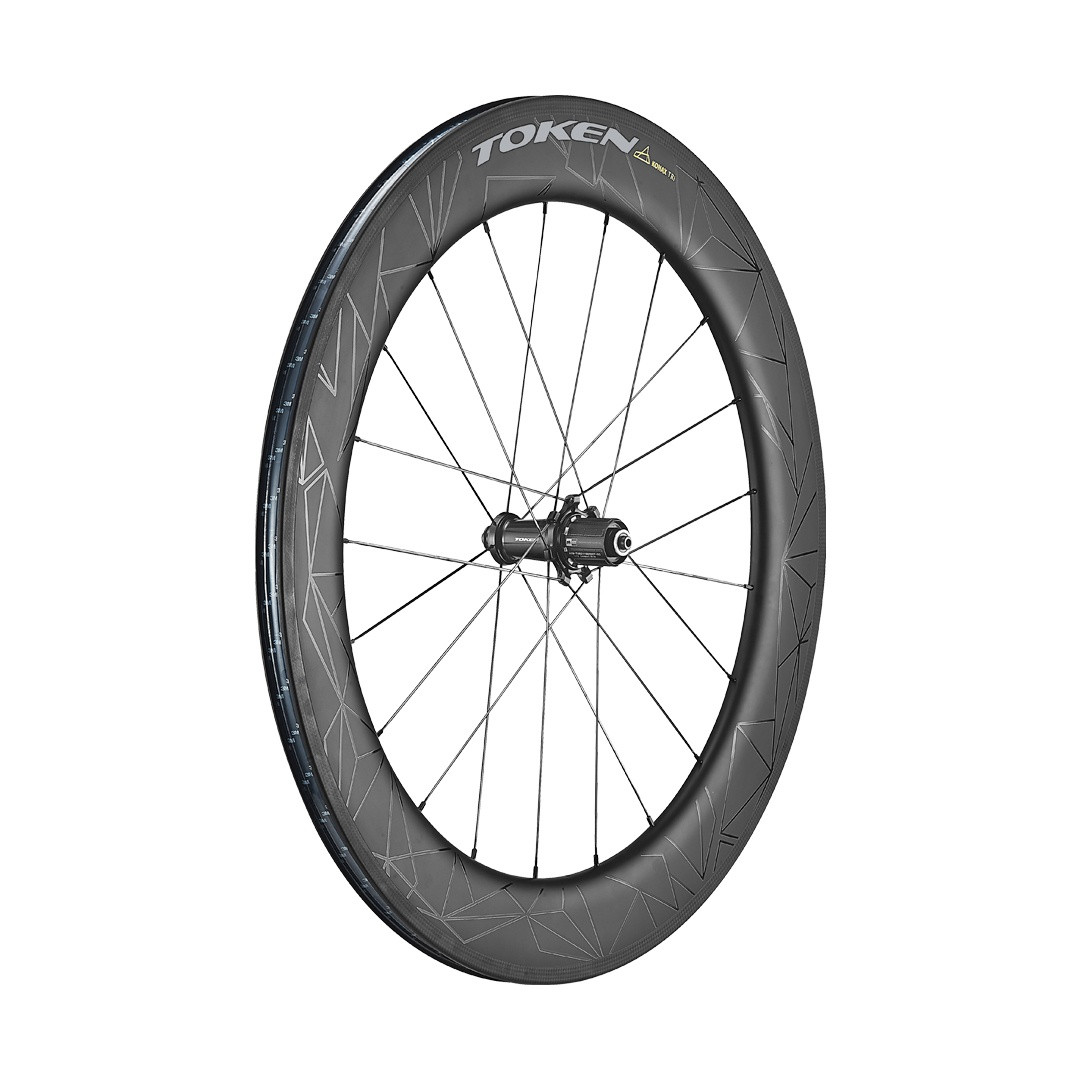

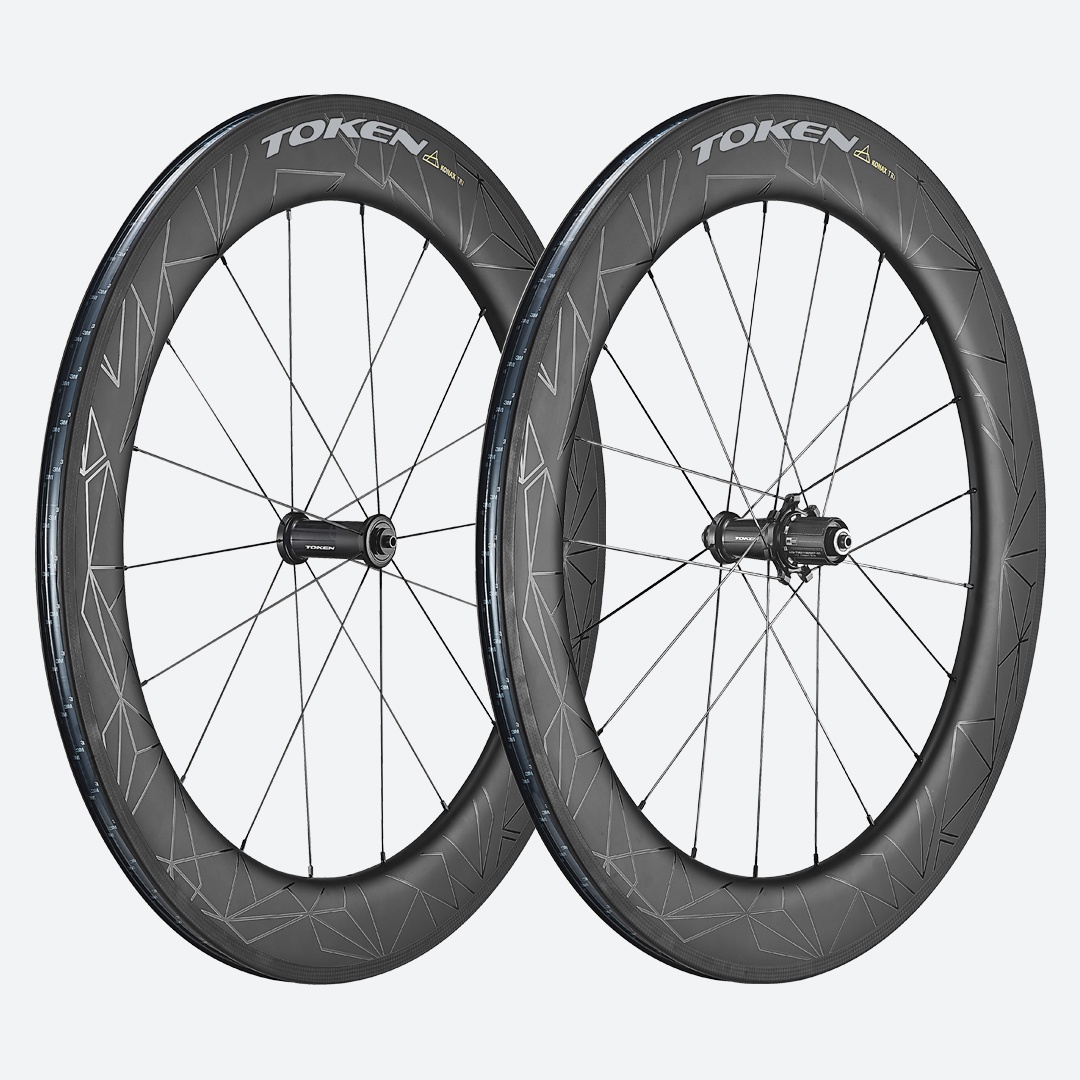

KONAX TRI
Named after the KONA Triathlon World Championship
Total Weight
1766 g
01
Details
TOKEN has launched 3 all new high end carbon fiber wheelsets.
Each wheel has been meticulously developed to provide exceptional strength to weight ratio. The wheelsets are the Ventous - 36mm , the Konax Pro - 52mm, and the Konax Tri - 76mm.
They are ready to hit the road in both rim or disc brake versions. The KONAX TRI wheelset is named after the KONA Triathlon World Championship (TRI: TRIATHLON).
76mm rim depth and the "OAD" aerodynamic design has been adapted to ensure that the wheels have optimum aerodynamic efficiency. This wheelset is specifically designed for triathlon events. The lateral rigidity is the strongest of the three wheelsets, and the mass is proportional to the inertia, resulting in high-speed cruising performance that is simply outstanding! On a track with strong crosswinds, the front wheels of the KONAX PRO disc have better crosswind resistance and provide improved handling sensitivity.
Rim Height
76 mm
Tyre Type
Tubeless Ready
Rim Material
Carbon Fibre
Bearing Type
TFT
Weight
1766 g
02
Specs
Tyre Type | Tubeless Ready |
---|---|
Weight | 811 g (f) / 955 g (r), total: 1766 g |
Rim Diameter | 700c |
Rim Material | Carbon Fibre |
Rim Width (External) | 27.4 mm |
Rim Width (Internal) | 20 mm |
Rim Height | 76 mm |
Nipples | External |
Cassette Compatibility | Shimano HG / SRAM XDR |
Spoke Lacing | Radial (f) and Diametric (r) |
Spoke Count | 18 (f) and 21 (r) |
Spoke Type | Sapim CX-RAY Straight |

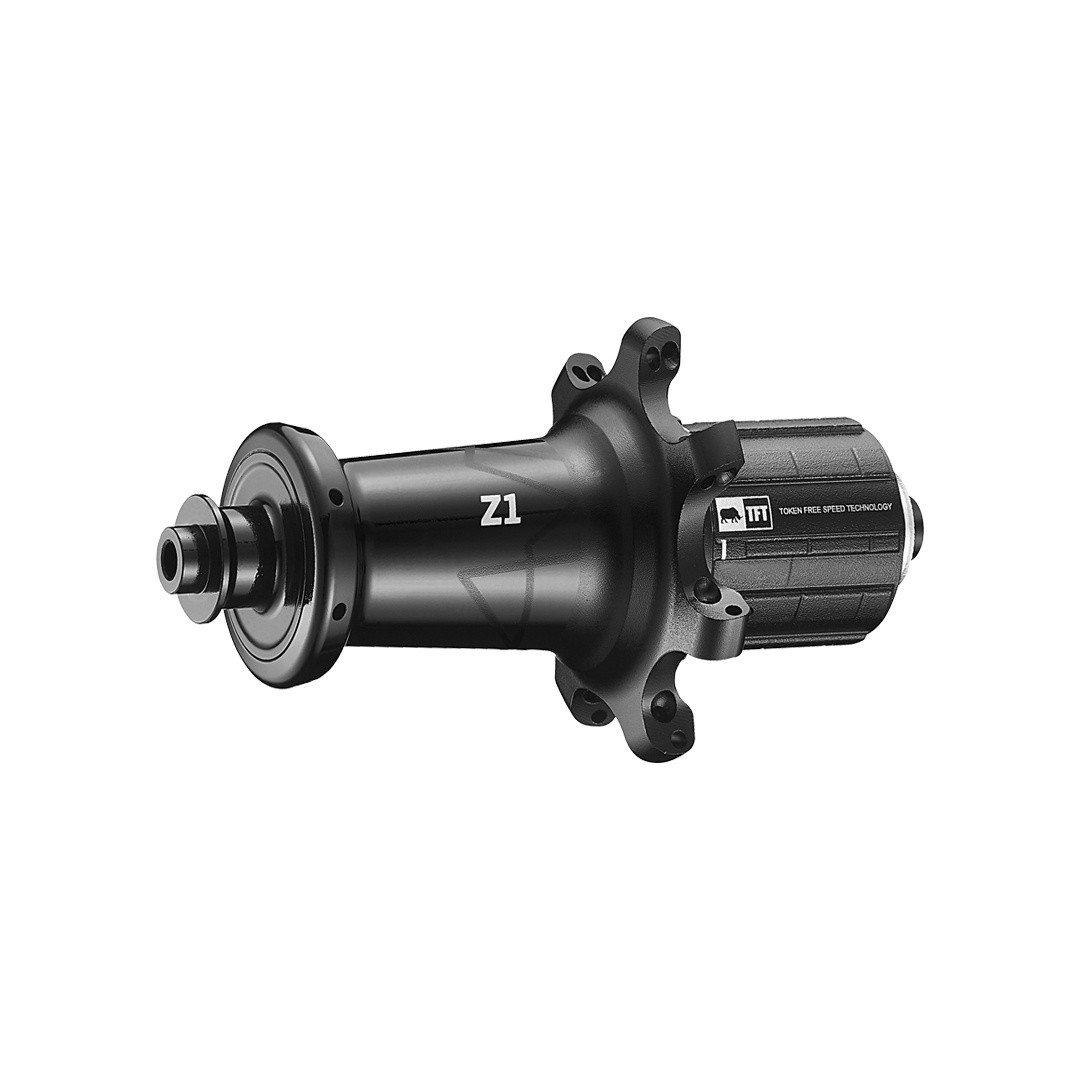

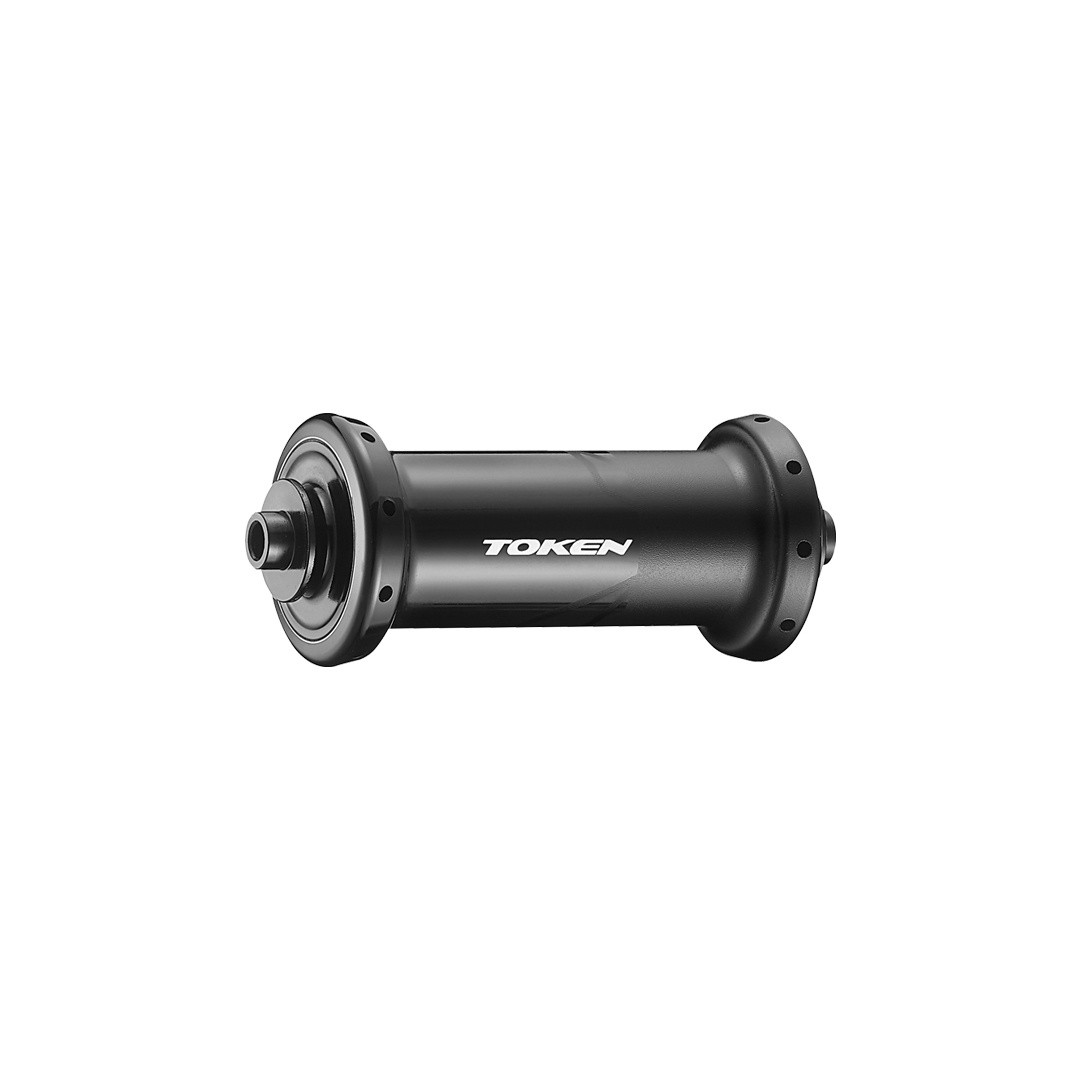

Hub Type | Z1 |
Bearing Count | 2 (f) and 4 (r) |
Bearing Type | TFT |
Brake Compatibility | No |
Spacing | Road - 100mm (f) and 130 mm (r) |
Included Extras | Skewers Carbon Specific Brake Pads Tubeless Valves |
Product Code | C76 |
Maximum Tyre Pressure: 115psi (700x25c)
Recommended Tyre Size: 700x25c - 700x28c
Recommended Weight Limit: 100kg
