Zenith

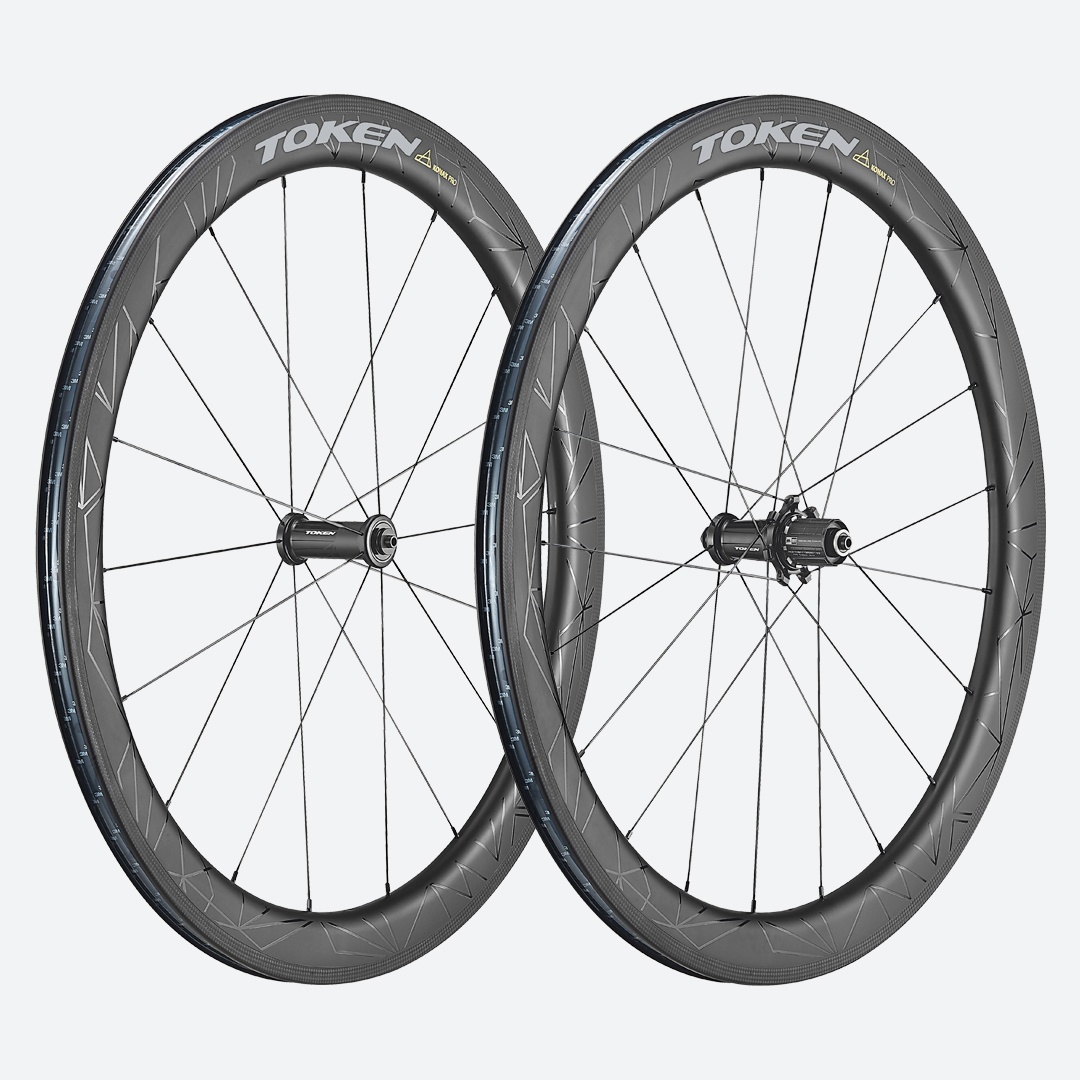

KONAX PRO
Named after the most revered Hall of Fame IRONMAX-Hawaii KONA World Championships
Total Weight
1452 g
01
Details
TOKEN has launched 3 all new high end carbon fiber wheelsets.
Each wheel has been meticulously developed to provide exceptional strength to weight ratio. The wheelsets are the Ventous - 36mm , the Konax Pro - 52mm, and the Konax Tri - 76mm. They are ready to hit the road in both rim or disc brake versions.
Konax is named after the most revered Hall of Fame IRONMAX-Hawaii KONA World Championships. This is significant in that the Konax aims to become a shining weapon on the KONA arena by creating a must use wheelset for the IRONMAX.
The Konax series comes with two editions: the KONAX PRO with a rim depth of 52mm, and the KONAX TRI that has a rim depth of 76mm. The rim height and the shape of the KONAX is the result of analysis using state of the art aerodynamic analysis software-CFD (Computational Fluid Dynamics). This enables the KONAX wheels to perfectly slice through the wind .
Rim Height
52 mm
Tyre Type
Tubeless Ready
Rim Material
Carbon Fibre
Bearing Type
TFT
Weight
1452 g
02
Specs
Tyre Type | Tubeless Ready |
---|---|
Weight | 654 g (f) / 798 g (r), total: 1452 g |
Rim Diameter | 700c |
Rim Material | Carbon Fibre |
Rim Width (External) | 27.4 mm |
Rim Width (Internal) | 20 mm |
Rim Height | 52 mm |
Nipples | External |
Cassette Compatibility | Shimano HG / SRAM XDR |
Spoke Lacing | Radial (f) and Diametric (r) |
Spoke Count | 18 (f) and 21 (r) |
Spoke Type | Sapim CX-RAY Straight |

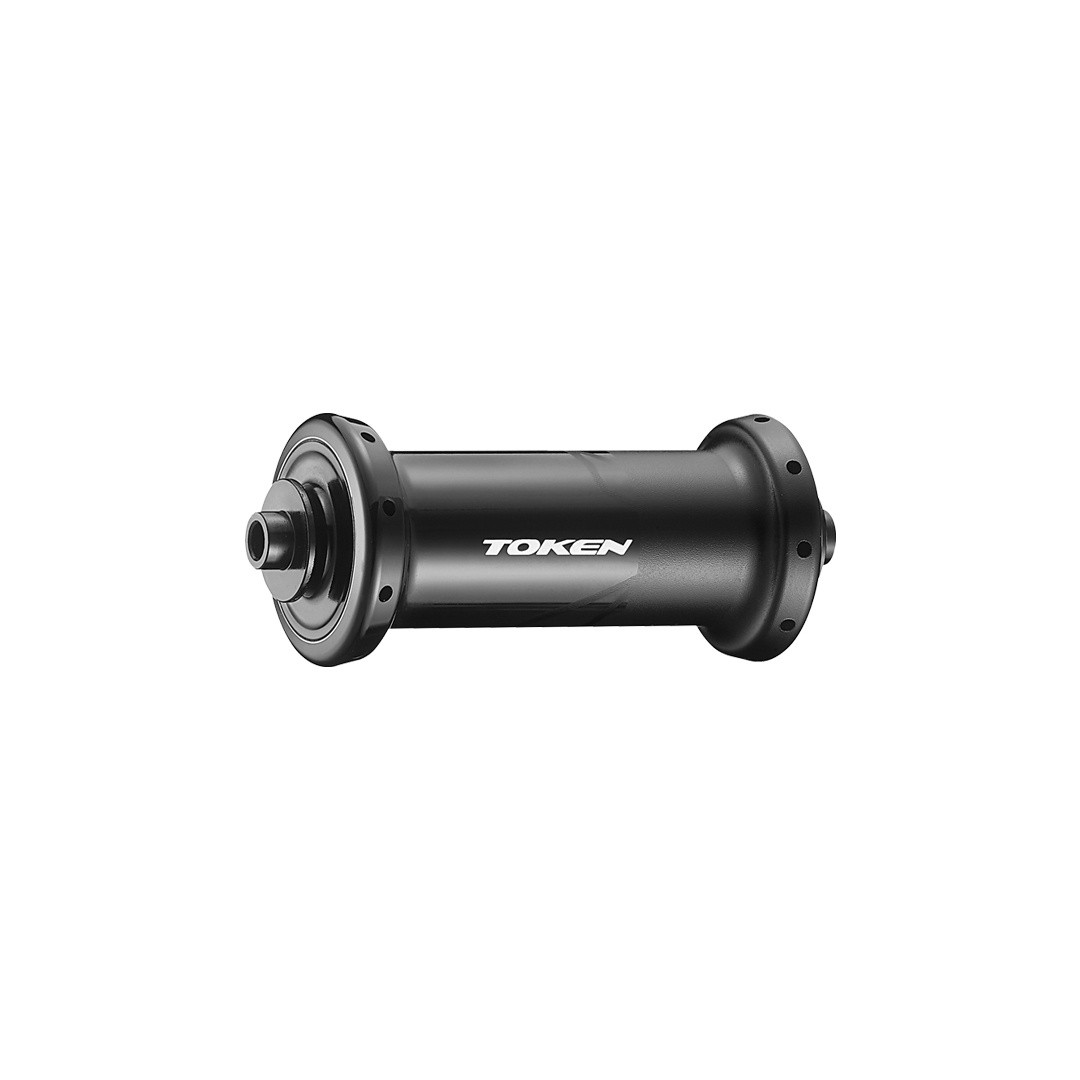

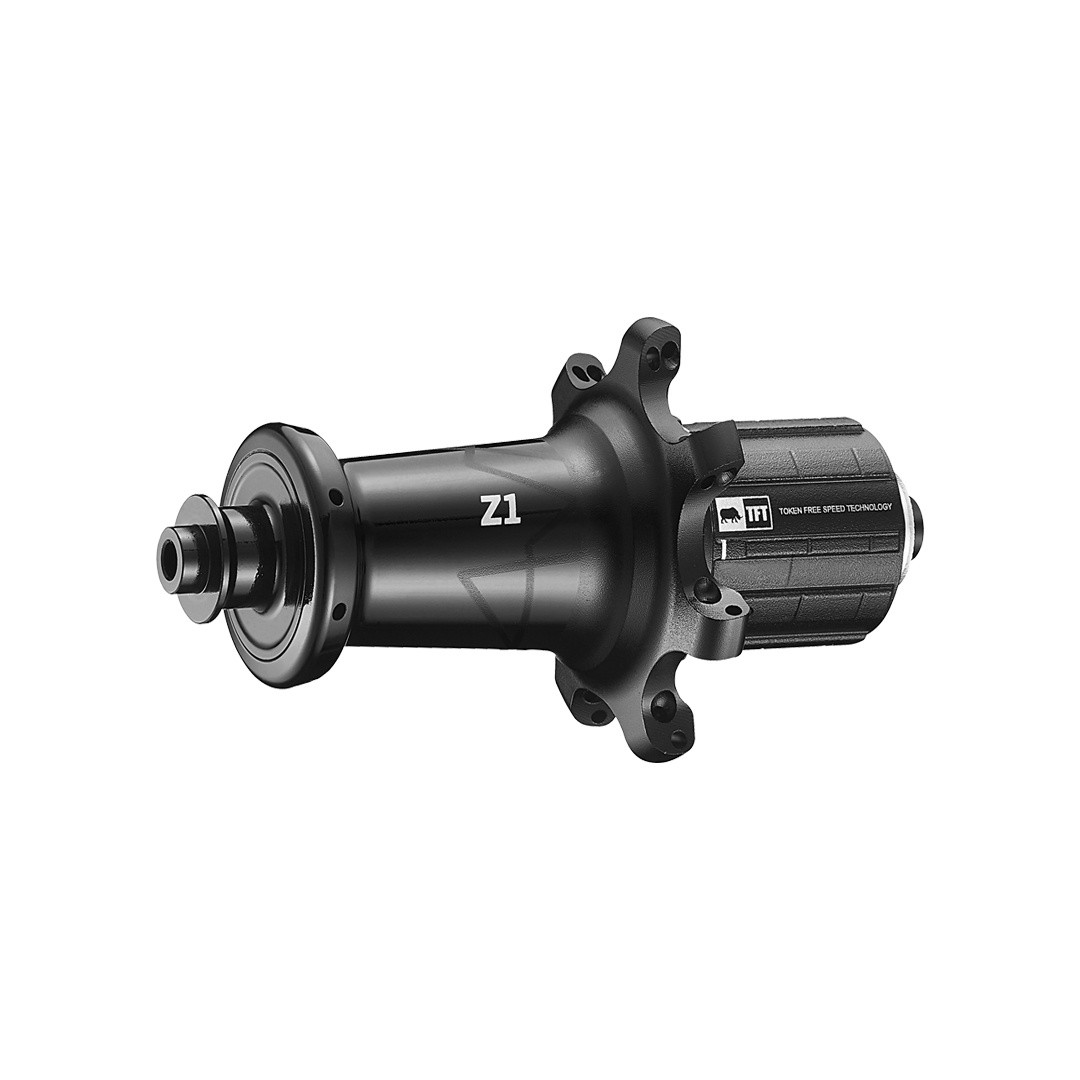

Hub Type | Z1 |
Bearing Count | 2 (f) and 4 (r) |
Bearing Type | TFT |
Brake Compatibility | No |
Spacing | Road - 100mm (f) and 130 mm (r) |
Included Extras | Skewers Carbon Specific Brake Pads Tubeless Valves |
Product Code | C52 |
Maximum Tyre Pressure: 115psi (700x25c)
Recommended Tyre Size: 700x25c - 700x28c
Recommended Weight Limit: 100kg
03
Support
USER MANUALS
C52-ZI.pdf
