Details

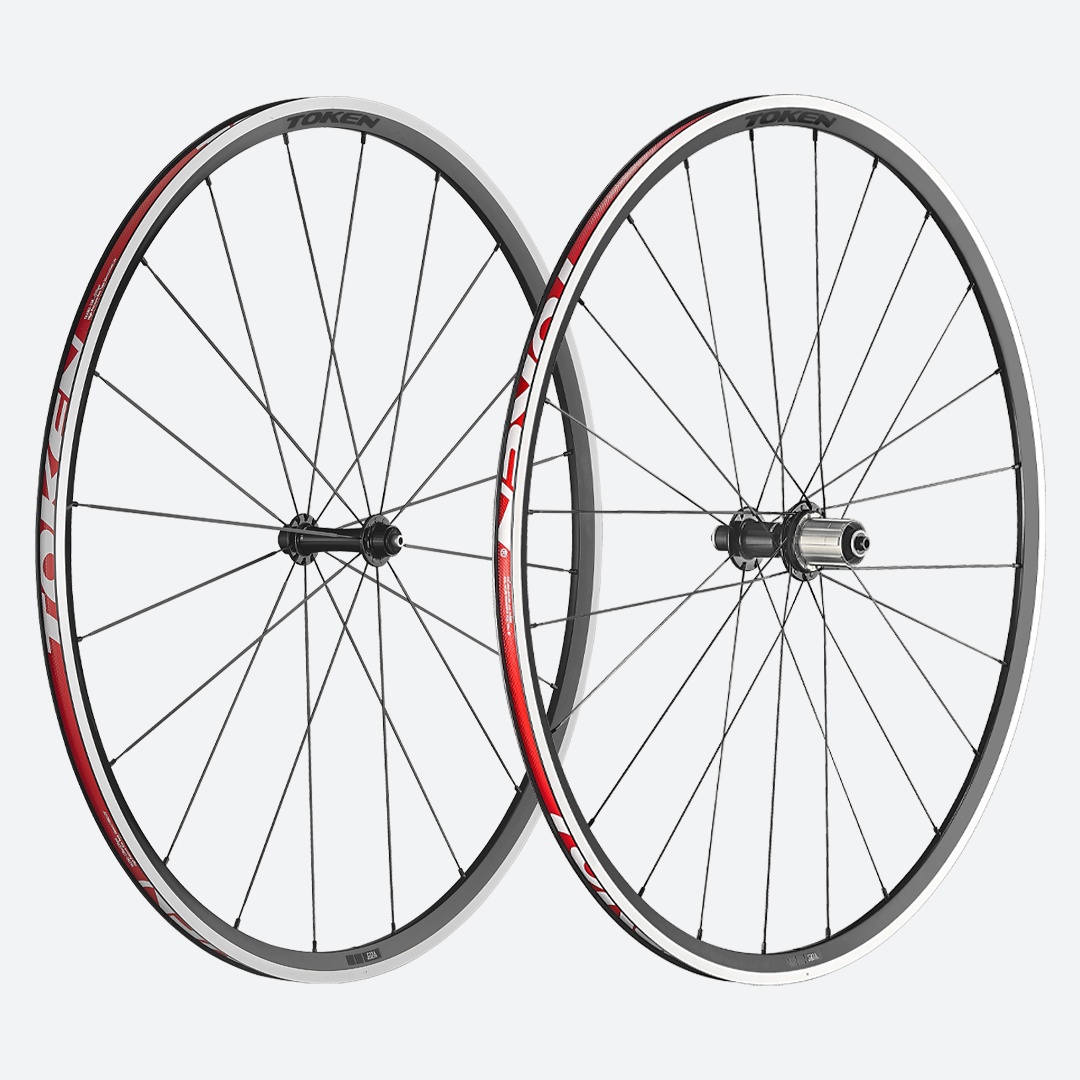

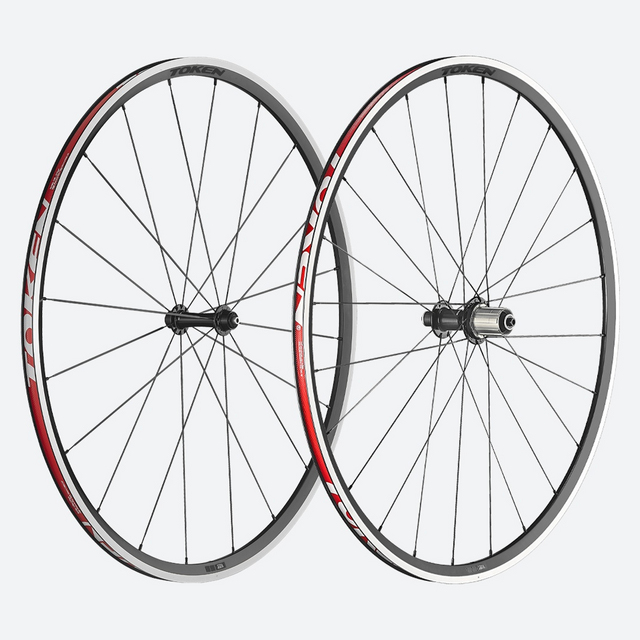

The C22A is our super lightweight alloy wheelset that accelerates and climbs like a carbon wheel but has the durability and consistent braking of an alloy wheel.
Rim Height
22 mm
Tyre Type
Clincher
Rim Material
Alloy
Bearing Type
Premium
Weight
1331 g
Features:
02
Specs
| Tyre Type | Clincher |
|---|---|
| Weight | 585 g (f) / 746 g (r), total: 1331 g |
| Rim Diameter | 700c |
| Rim Material | Alloy |
| Rim Width (External) | 18.2 mm |
| Rim Width (Internal) | 13.6 mm |
| Rim Height | 22 mm |
| Nipples | External |
| Cassette Compatibility | Shimano HG / SRAM XDR |
| Spoke Lacing | Radial (f) and diametric (r) |
| Spoke Count | 20 (f) and 24 (r) |
| Spoke Type | Pillar PSR1528 J-bend |

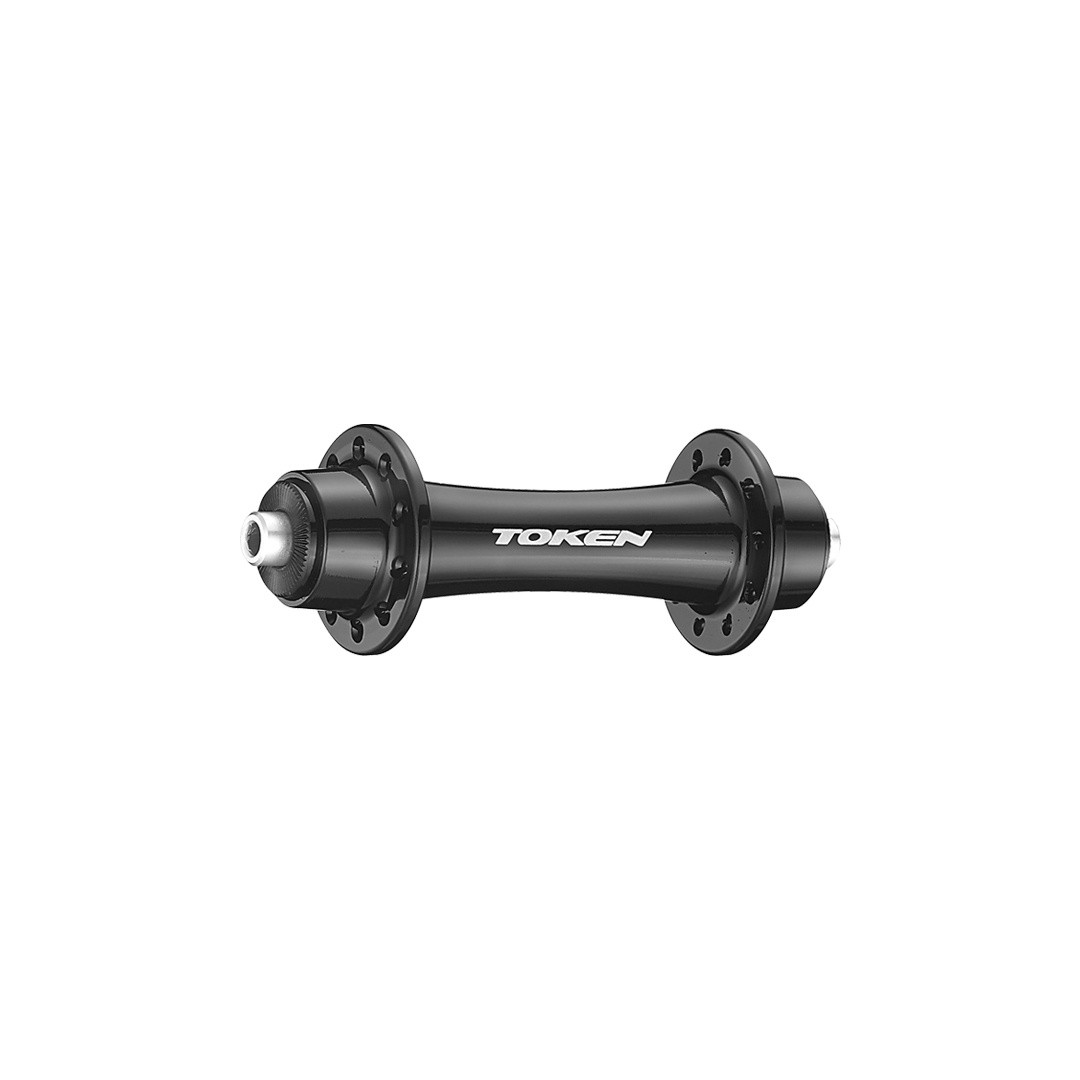

| Hub Type | Arsenal Q |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | Premium |
| Brake Compatibility | No |
| Spacing | Road - 100mm (f) and 130 mm (r) |
| Included Extras | Rim tape Skewers |
| Product Code | C22A |
Maximum Tyre Pressure: 120psi (700x23c)
Recommended Tyre Size: 700x23c
Recommended Weight Limit: 80kg
03
Support
USER MANUALS
C22A-TK1971.pdf
