Resolute
Arsenal Q Hubset
01
Details

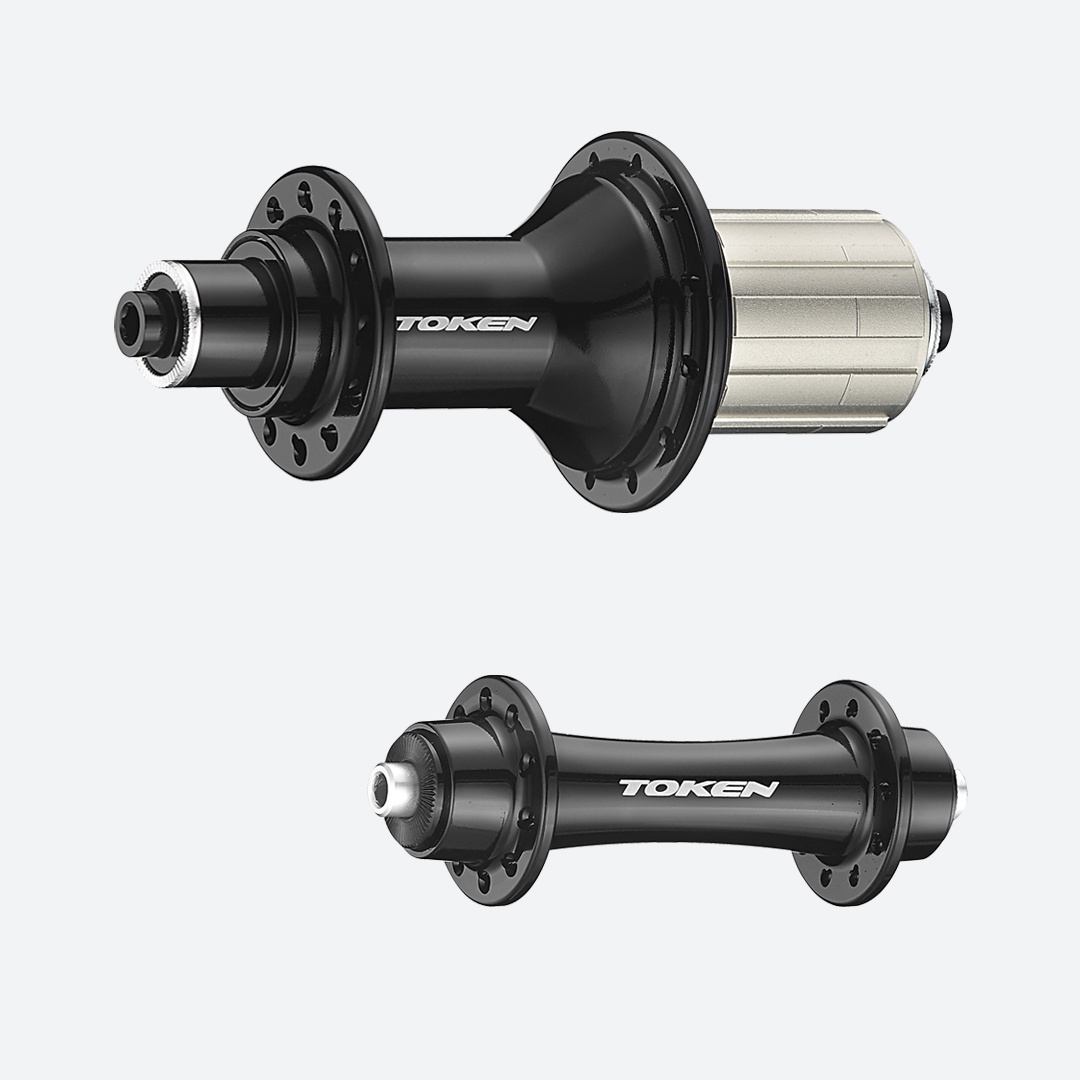

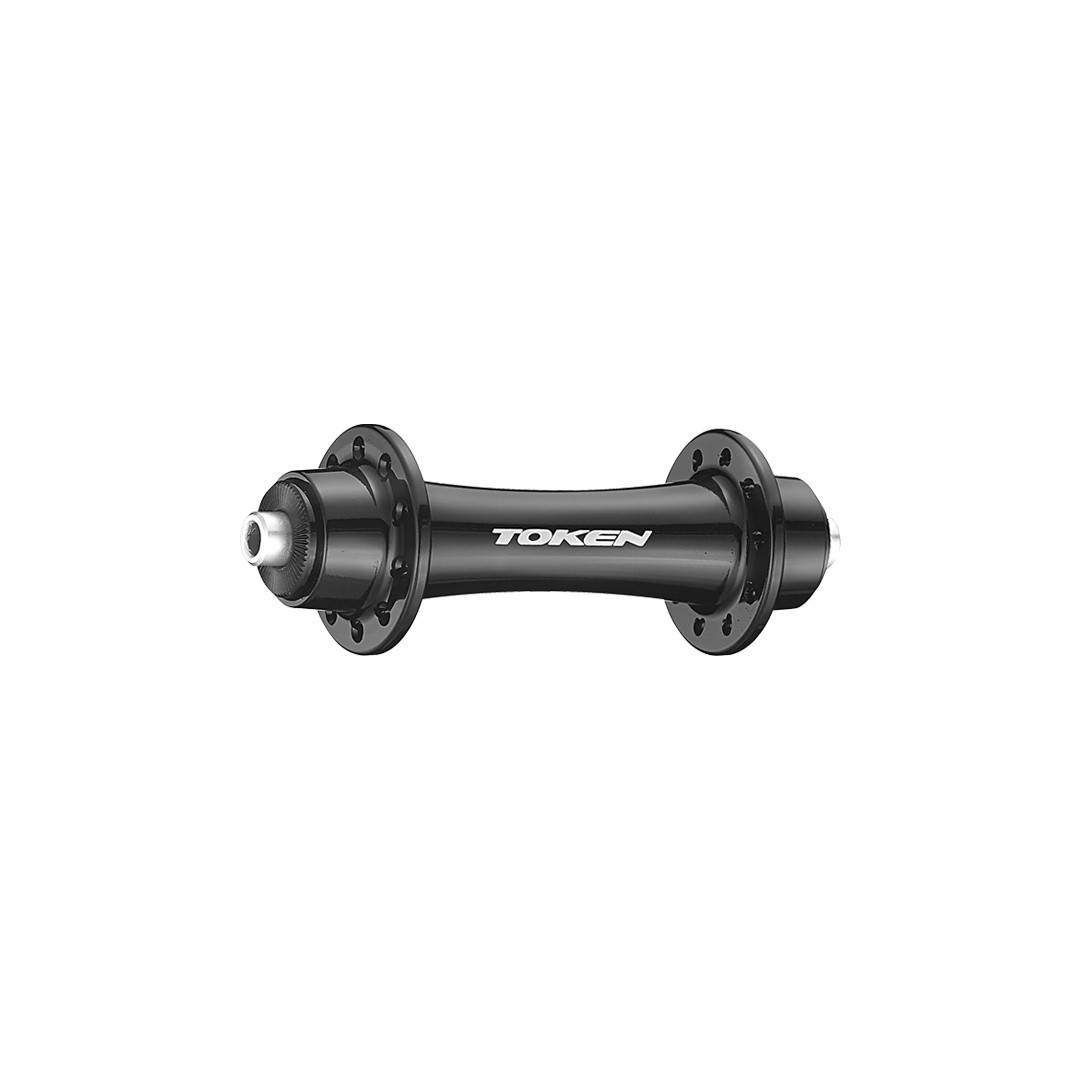

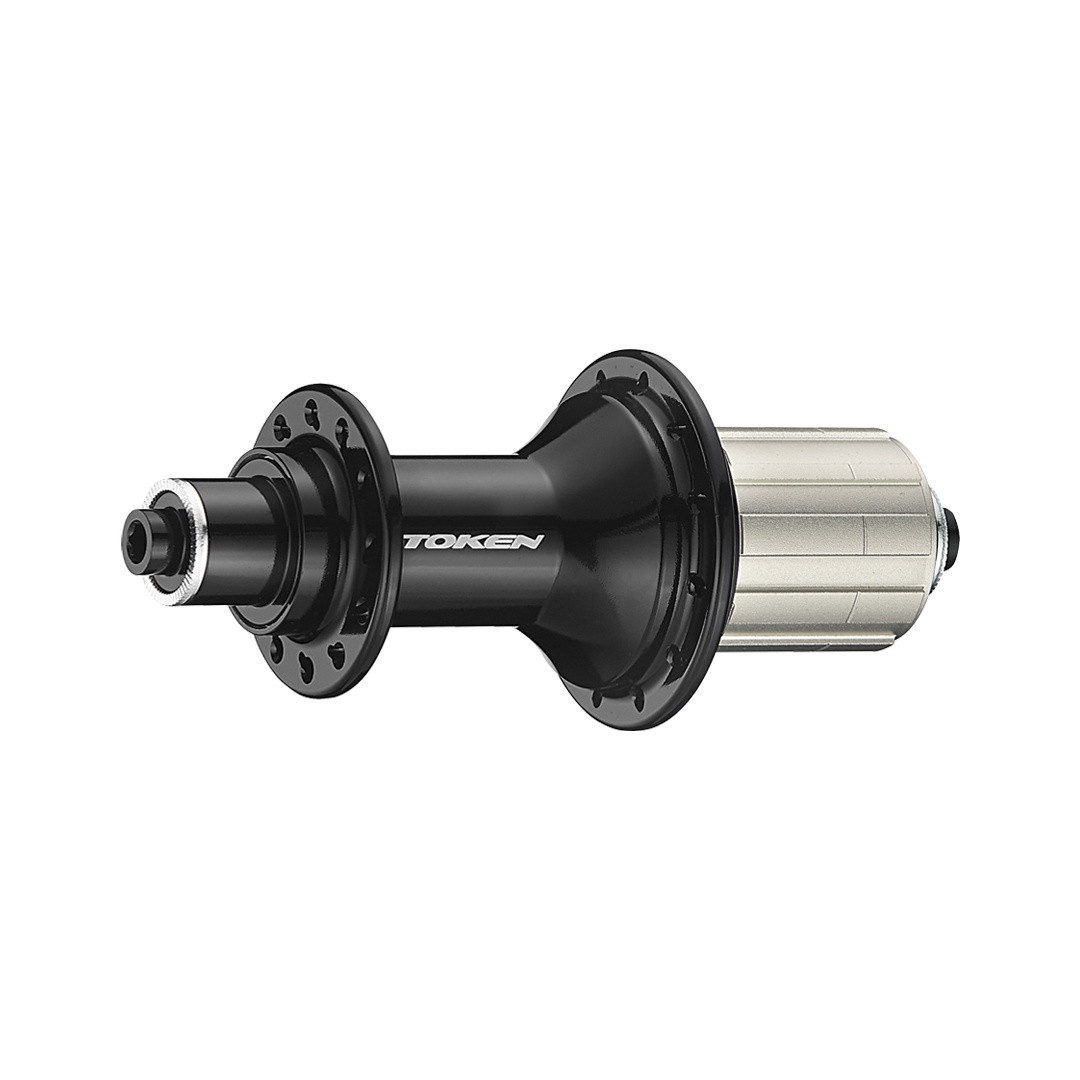

The Arsenal Q is a very light hubset that uses J-bend spokes so you can build up a light and strong wheelset.
When building up a wheel of your dreams you need to start with a good base and the Arsenal Q is perfectly suited for the task. This hubset weighs less than 300 grams and will allow you to build up a seriously light wheelset if you pick the right rims. It has tall enough flanges that you will get a stiff wheel, even if you build it up using soft alloy rims.
Our high-quality Premium Bearings create a solid foundation for the Arsenal Q hub. You will build up a smooth and robust wheelset regardless of the rim you choose.
Spacing
100 mm (f) and 130 mm (r)
Spoke Holes
20 (f) and 24 (r)
Bearing Type
Premium
Weight
285 g
Features:
02
Specs
| Spacing | Road |
|---|---|
| Material | Aluminium |
| Spoke Holes | 20 (f) and 24 (r) |
| Spoke Type | J-Bend |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | Premium |
| Cassette Compatibility | Shimano HG / SRAM XDR / Campy |
| Weight | 77 g (f) / 208 g (r), total: 285 g |
| Brake Compatibility | No |
| Product Code | TK1971 TK2754 (Shimano Cassette Body) TK2742 (Campy Cassette Body) TK2725 (SRAM XDR Cassette Body) |
03
Support
USER MANUALS
license.pdf
