Details
We Value Efficiency As Much As You Do

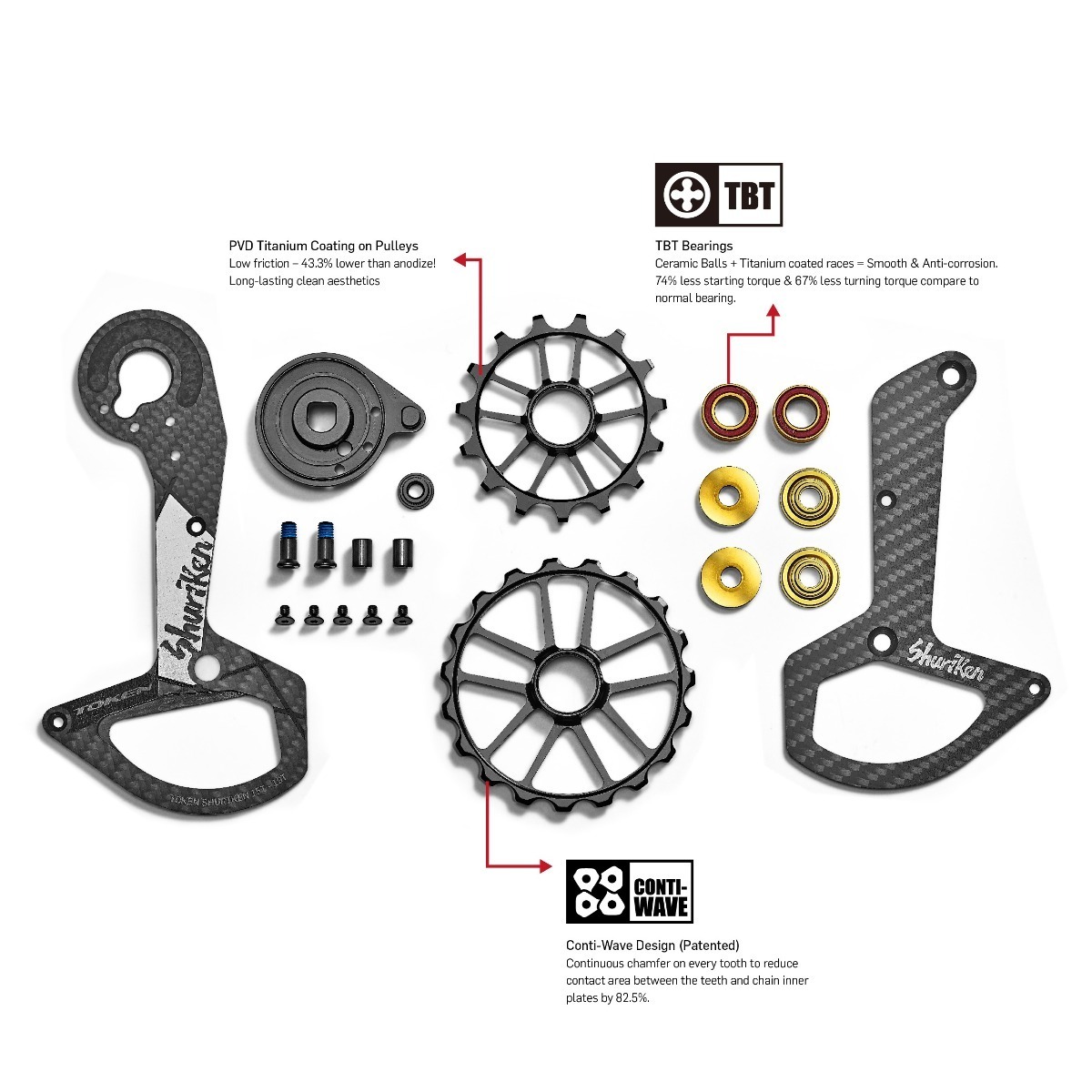

The Shuriken oversized pulley system was engineered for maximum performance and designed to enhance drivetrain efficiency on any bike. The larger pulley diameter enables the system to rotate at lower RPMs, reducing the chain's articulation angle and subsequently minimizing drivetrain friction. The TBT bearings within the pulleys are filled with specially developed light grease to keep drag low and minimize resistance. The combination of a carbon fiber cage and hardened steel/dura-aluminum hardware establishes a lightweight yet robust foundation for the system.
The pulleys themselves are crafted from dura-aluminum and coated with PVD (Physical Vapor Deposition) for enduring low friction and a clean aesthetic. A purpose-specific tooth profile ensures precise shifting and exceptionally smooth operation. Upgrading to the Shuriken oversized pulley system not only allows you to increase drivetrain capacity on a short-cage derailleur but also enables the use of a larger cassette for an expanded gear range. Embrace a more effortless and enduring ride with the Shuriken oversized pulley system.
What is Conti-Wave?
Conti-Wave machining reduces chain noise by minimizing the contact surface against the chain. The chain enters the rear derailleur at various angles. The Conti-Wave tooth profile, designed for the lower pulley, ensures smooth pulley-and-chain engagement regardless of the gear position. The continuous chamfered form on the teeth's edge reduces the contact area between the teeth and chain inner plates by 82.5%, further increasing efficiency while perfectly guiding the chain.
Q: What’s the difference between SRAM road AXS (12s-electronical) derailleurs?
A: Technically, it's the material of the pulley cage plates, the shape of the outer parallelogram link, surface treatment of some parts, and the pulley bearings that are different. The pulley cages of the three models are interchangeable.
Q: Then what’s the difference between SRAM standard road AXS derailleurs and XPLR models?
A: The upper knuckle and the pulley cage are different. On XPLR models, the upper knuckle is longer (and has a different aesthetic) and the pulley cage has the upper pulley off-center placed from the pivot. These changes are for compatibility with up to a 44T lowest cog. The pulley cages of the XPLR models are interchangeable too.Q: Can I modify my standard road AXS derailleur to XPLR?
A: Since the upper knuckle and the outer parallelogram link are permanently assembled together in the factory, you will need to replace the upper knuckle entirely with the outer link and the complete pulley cage. Note that one of the end caps of the upper pulley is different on XPLR models. This modification is technically possible but could be costly.Q: So, which models of AXS derailleurs is Shuriken TK1759XS compatible with?
A: I'm glad you asked. The Shuriken TK159XS is compatible with standard road AXS derailleurs, which include Red, Force.Q: What will happen if I upgrade my XPLR AXS derailleur with Shuriken TK1759XS?
A: Your XPLR derailleur will look cooler, run smoother, but cassette compatibility will be limited. You might feel better, but overall performance is not guaranteed.Features:
02
Specs
| Bearings | TBT |
|---|---|
| Pulley Wheel | Upper 15T, lower 19T |

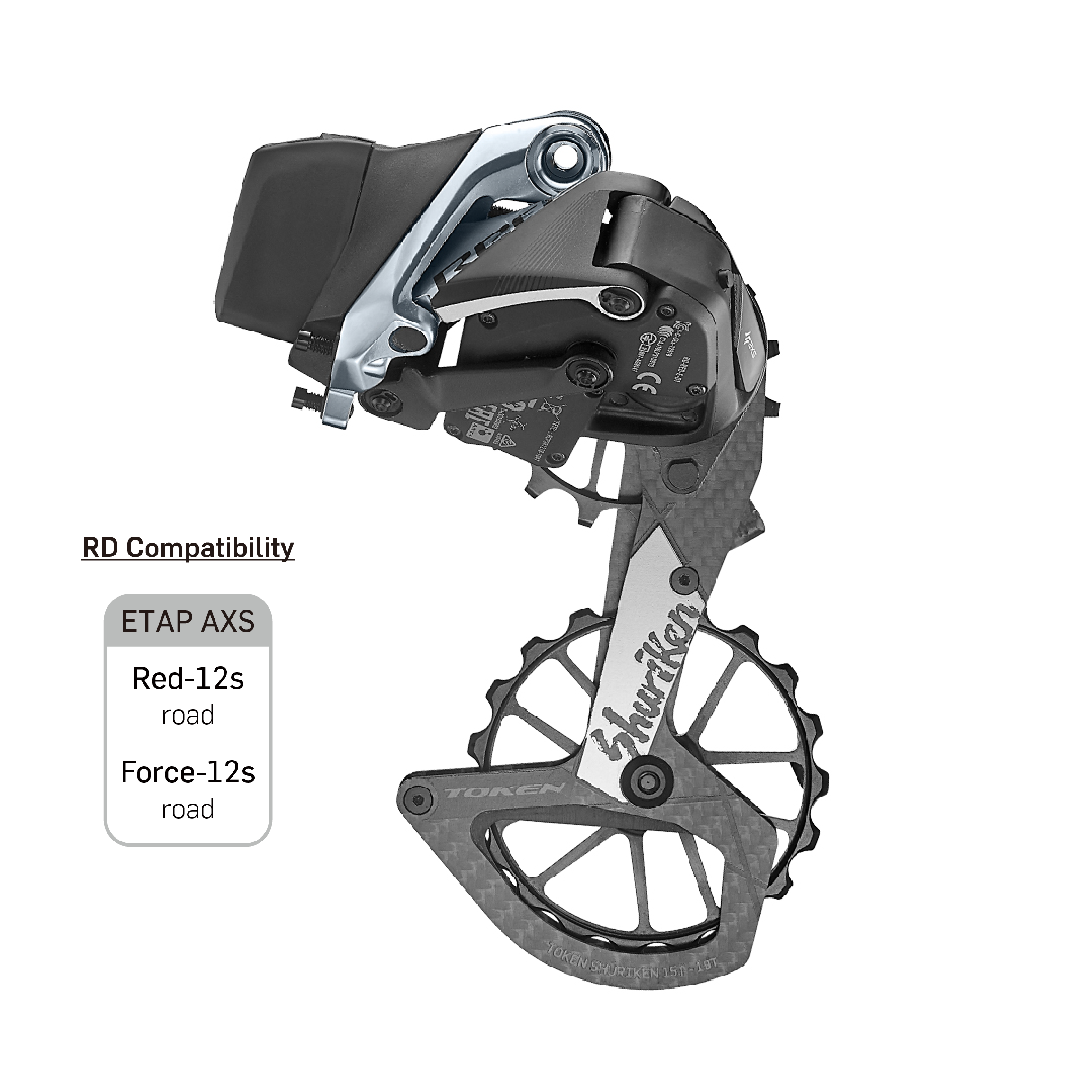

| RD Compatibility | Road-AXS (excluding XPLR) Red and Force, 33T and 36T versions |
| Drivetrain capacity | 13T(chainring) + 26T(cassette) |
| Lowest (largest) cog | 36T |
| Weight | 61 g / set |
| Plate Material | Matte 3K Carbon |
| Pulley Material | Aluminium with titanium coating |
| Colours | Grey Black (PVD) |
| Product Code | TK1759XS |
03
Support
USER MANUALS
Shuriken TK1759XS Manual.pdf
