01
Details

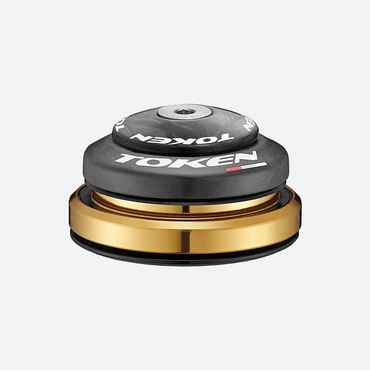

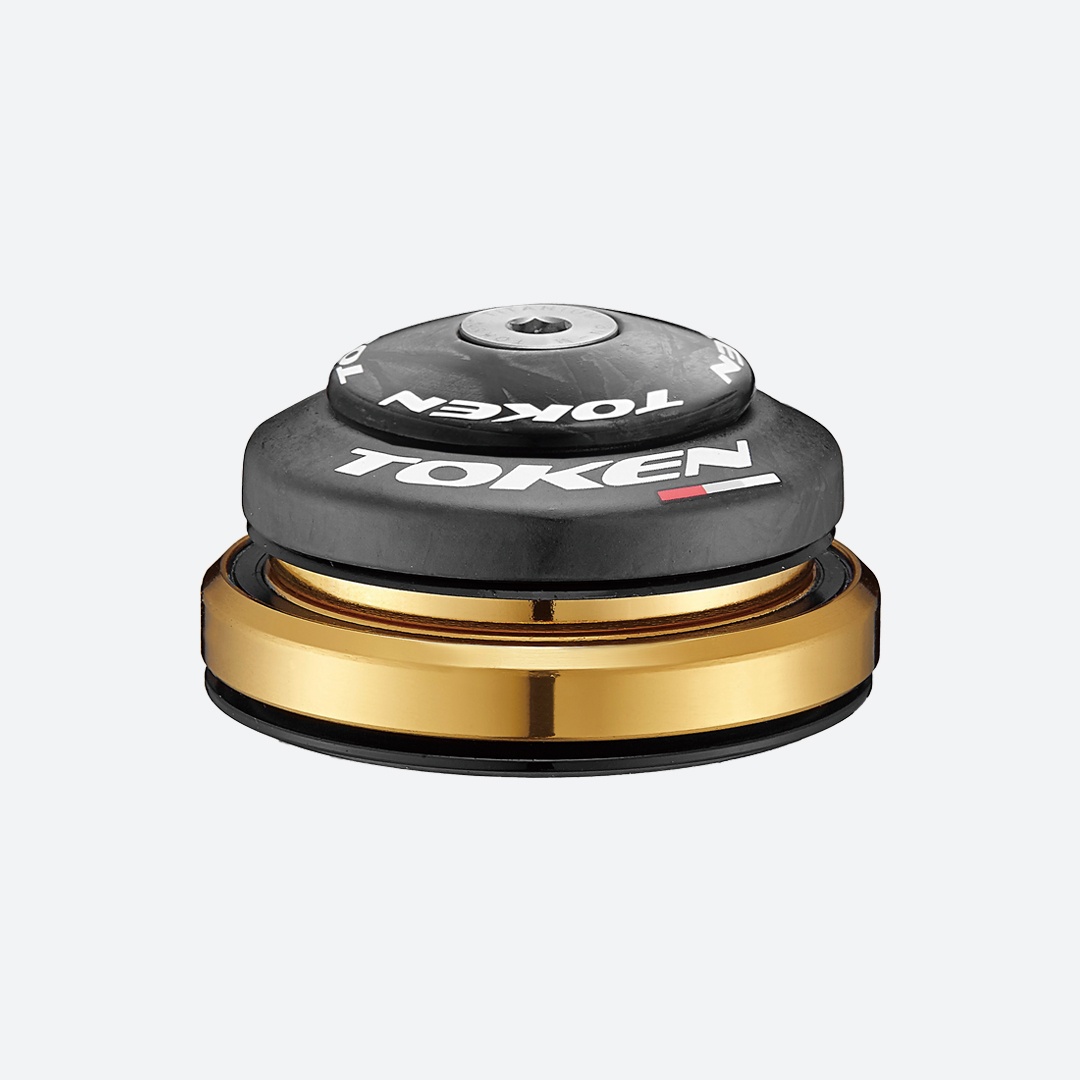

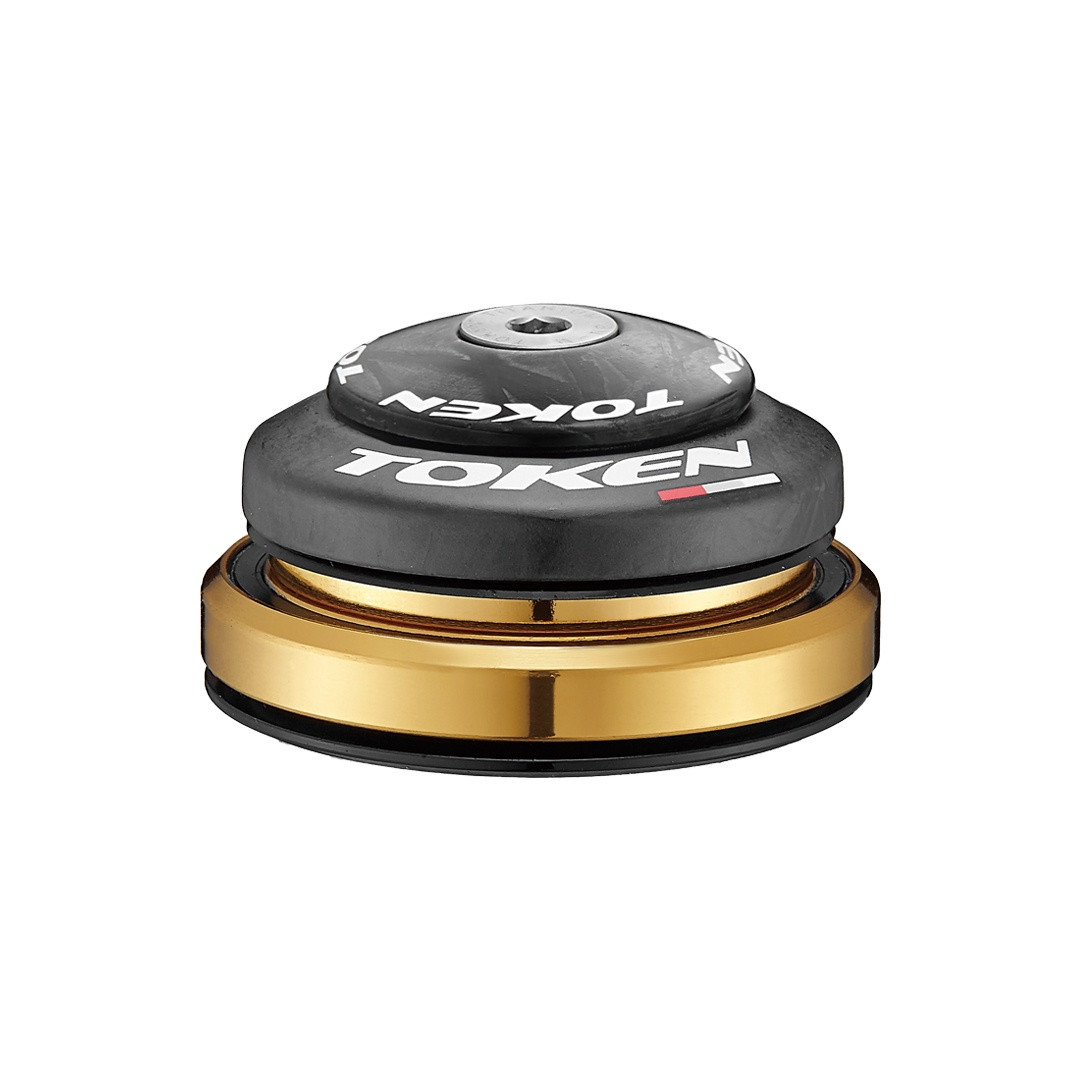

We start making the OMEGA C-Series headsets by using our ceramic TBT bearings with titanium nitrite coated races because they roll smoothly and won’t rust. The bearings are angular contact type and this provides stability while allowing for adjustability.
We want the headset to spin smoothly and also to last a long time so we seal the bearings very well against the elements. To make the looks match the great performance of the headset, we supply the headset with a carbon top cover. We don’t skimp on the crown race either – we CNC it from tough 7075 alloy so it provides a more stable contact point for the headset.
Headset Type
Integrated

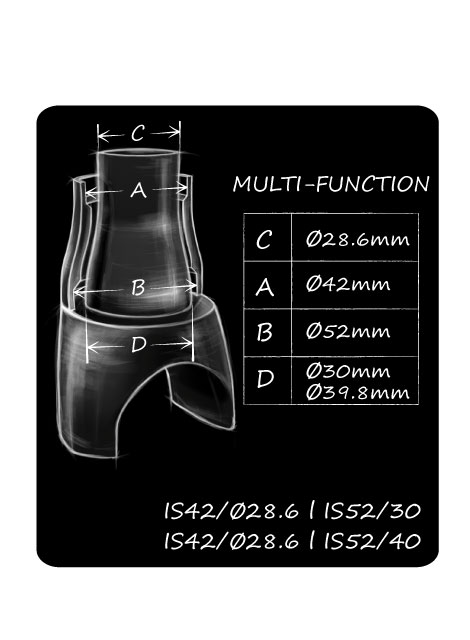

SHIS Code
IS42/28.6 l IS52/30
IS42/28.6 l IS52/40
Steerer
1-1/8”
1-1/8” – 1.5”
Bearings
TBT
02
Specs
Headset Type | Integrated |
---|---|
Steerer | 1-1/8” 1-1/8” – 1.5” |
Bearings | TBT |
Top Cap Material | Carbon |
Bolt Material | Titanium |
Crown Race Material | Aluminium |
Colours | Matte Carbon |
SHIS Code SHIS Code Weight OMEGA-C83-TBT
IS42/28.6 l IS52/30
95 g / set OMEGA-C83-TBT
IS42/28.6 l IS52/40
90 g / set |
03
Support
USER MANUALS
C83-TBT-TEC-MANUAL.pdf
