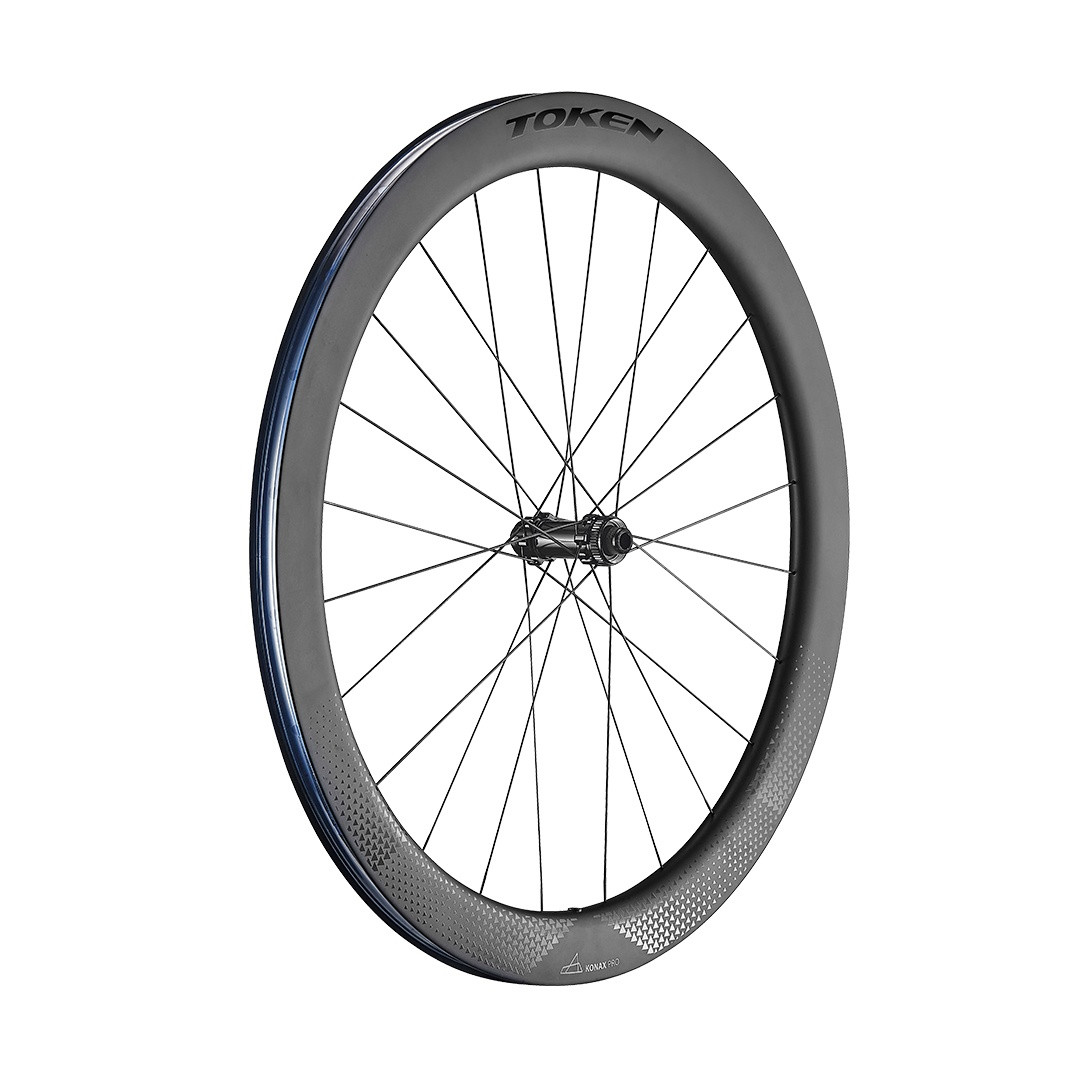

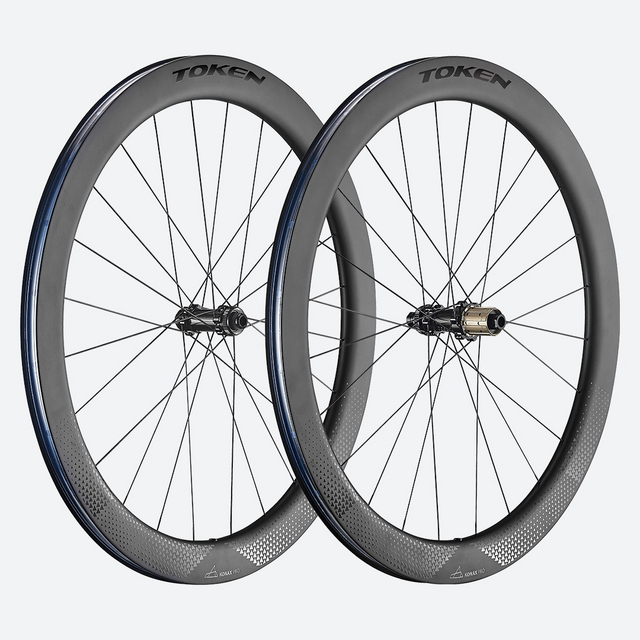

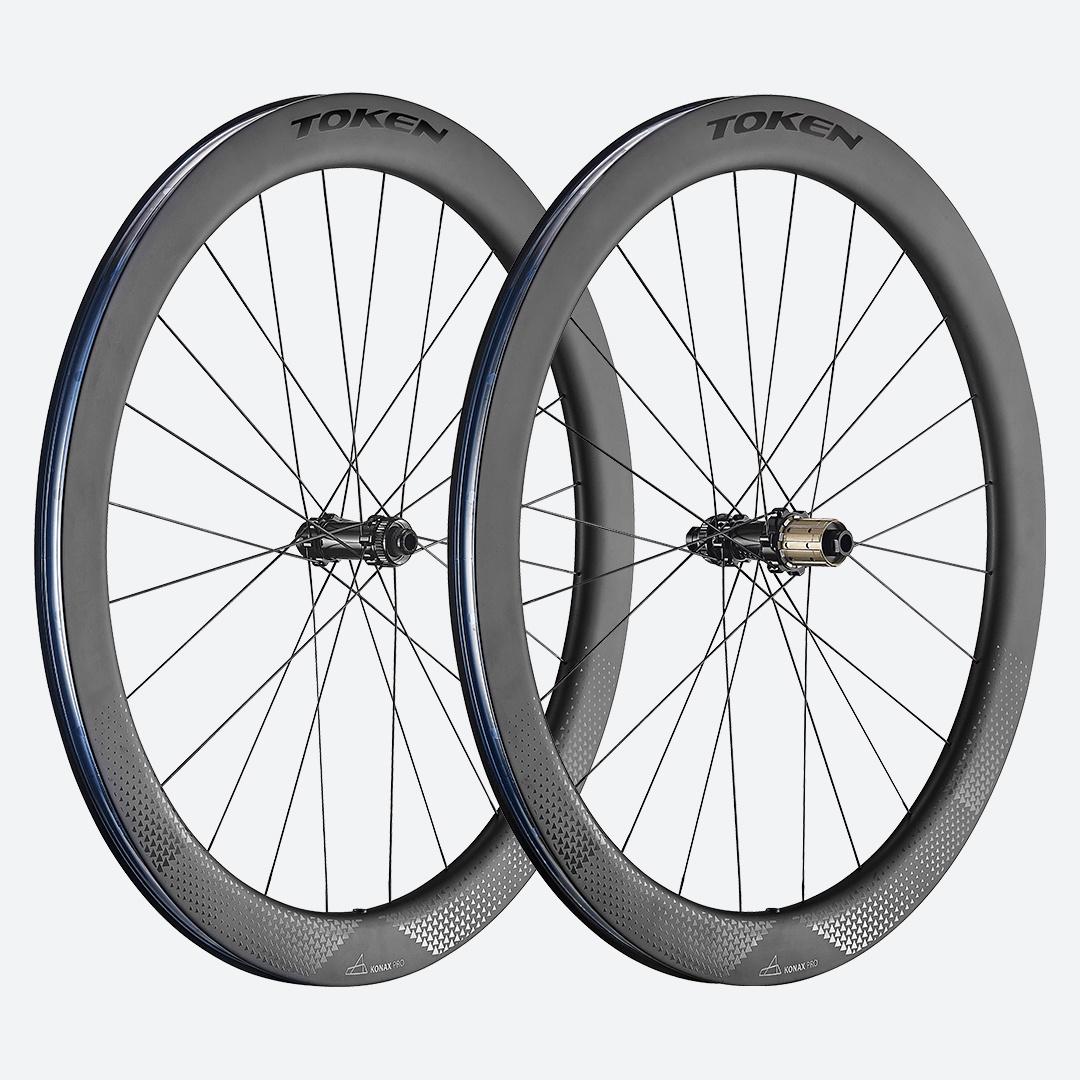

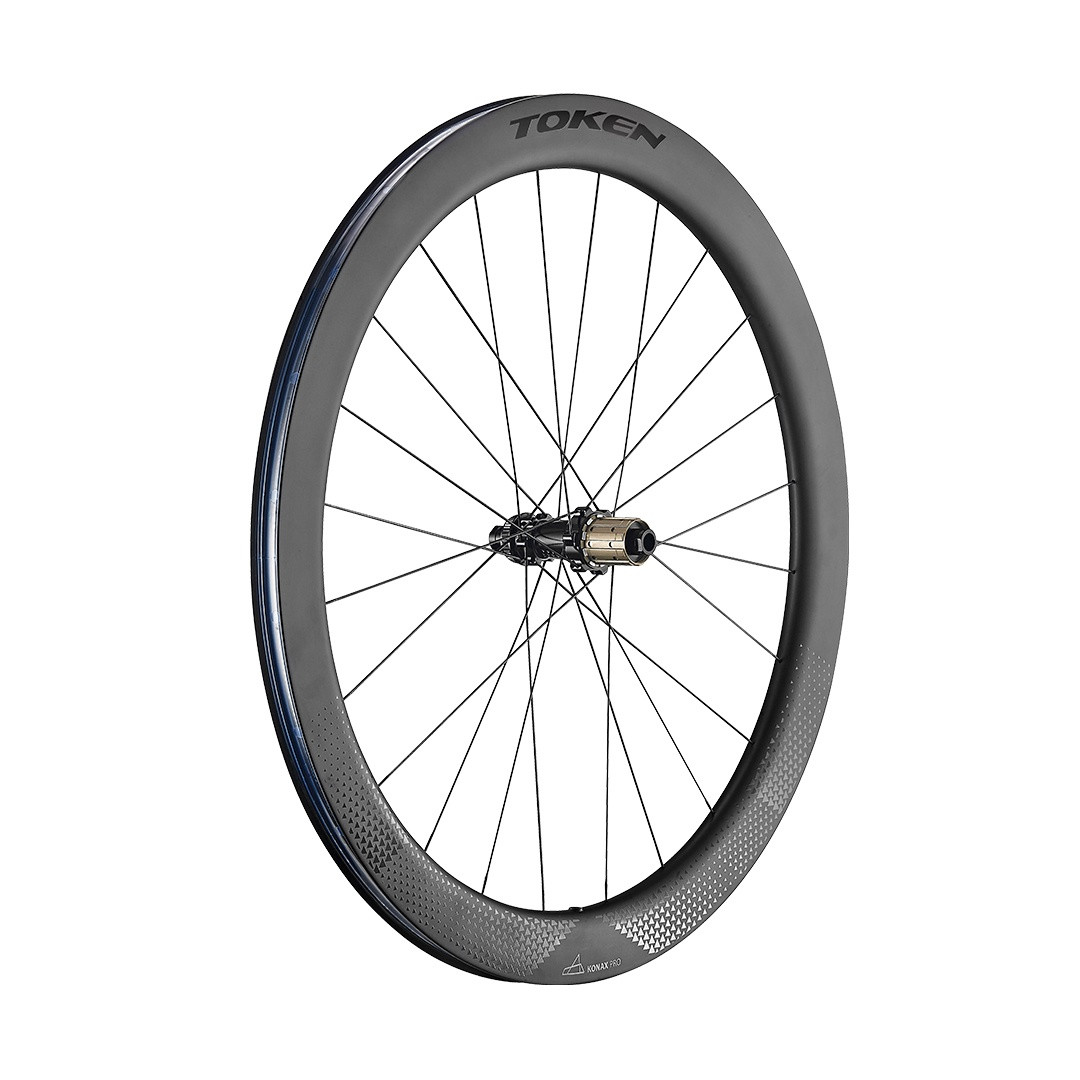

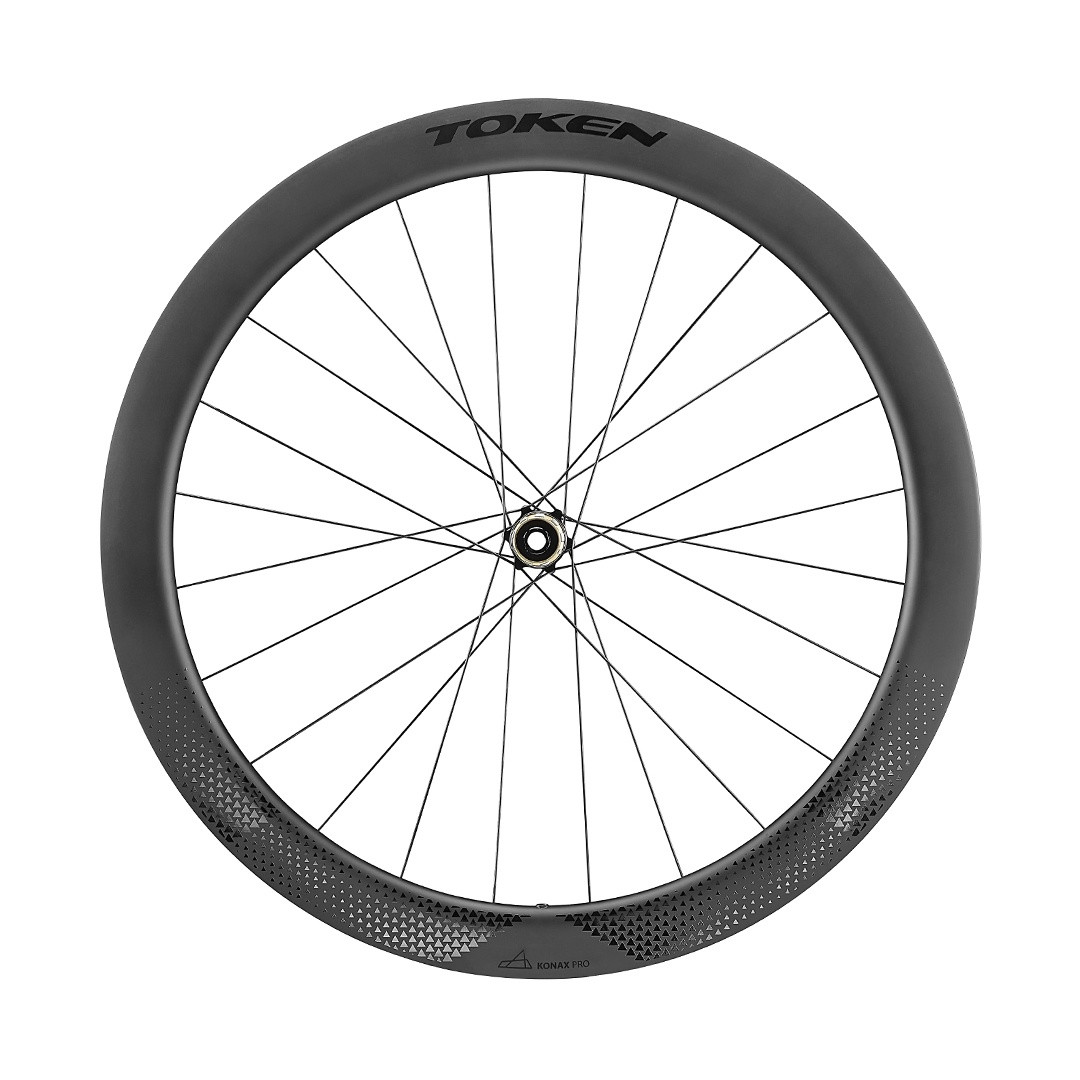

KONAX PRO DISC
Named after the most revered Hall of Fame IRONMAX-Hawaii KONA World Championships
Total Weight
1463 g
01
Details
TOKEN has launched 3 all new high end carbon fiber wheelsets.
Each wheel has been meticulously developed to provide exceptional strength to weight ratio. The wheelsets are the Ventous - 36mm , the Konax Pro - 52mm, and the Konax Tri - 76mm. They are ready to hit the road in both rim or disc brake versions.
Konax is named after the most revered Hall of Fame IRONMAX-Hawaii KONA World Championships. This is significant in that the Konax aims to become a shining weapon on the KONA arena by creating a must use wheelset for the IRONMAX.
The Konax series comes with two editions: the KONAX PRO with a rim depth of 52mm, and the KONAX TRI that has a rim depth of 76mm. The rim height and the shape of the KONAX is the result of analysis using state of the art aerodynamic analysis software-CFD (Computational Fluid Dynamics). This enables the KONAX wheels to perfectly slice through the wind .
Rim Height
52.3 mm
Tyre Type
Tubeless Ready
Rim Material
Carbon Fibre
Bearing Type
TBT, Premium
Weight
1463 g
Main concept= SPEED
Simple enough to be approachable, yet enough details up-close to keep the viewer with the product a few seconds longer. When up-close to the product the next thing we want them to do is to feel like they want to touch the product. When touching the product, a stronger connection, emotion, and memory of the product will be formed in the viewer's mind. Great attention was paid to how the pattern feels when touching it. This helps us tap into another sense of the viewer. TOKEN believes the more senses we can use to our advantage, the more a viewer will feel connected to the product.
Q: Can I use tires that are not in the recommendation list?
A: The tire brands, models, and sizes listed as recommended have undergone extensive testing in TOKEN's lab. We do not suggest using tires not recommended by us, as they may have compatibility issues, such as difficulties with inflation or premature sidewall wear. We will periodically update the recommendation list.
Q: If I use a tire recommended by TOKEN, can I inflate it over 72psi?
A: The maximum recommended cold pressure is 72psi (or 5 bar) according to ETRTO (European Tyre and Rim Technical Organization) and TOKEN. Tires listed as recommended by TOKEN have been statically tested up to 115psi and dynamically tested up to 80psi without any failures. However, if you choose to inflate the tire to over 72psi, you do so at your own risk.
Q: Is there anything that requires extra attention during installation?
A: Try mounting the tire without tire levers first. If you find that tire levers are needed, use them with caution to avoid damaging the tire, rim, and sealing tape. If you have a tube of the right size available, you can mount the tire with the tube first, inflate it to the maximum pressure (72psi), and leave it for 12 hours to ensure the longevity of the sealing tape in the future.
Q: Can I use a tube on TOKEN hookless road wheelsets?
A: Yes, you can use a tube as long as the tire is recommended by TOKEN, and the cold pressure does not exceed 72psi.
Q: Can I ride the wheelset right after installation?
A: Like with any tubeless setup on bicycles, we recommend taking a short, slower ride first and then allowing the wheel to rest for 24 hours to ensure that the sealant works as expected. However, if you install the tire with a tube, the wheelset should be ready for use immediately after installation.

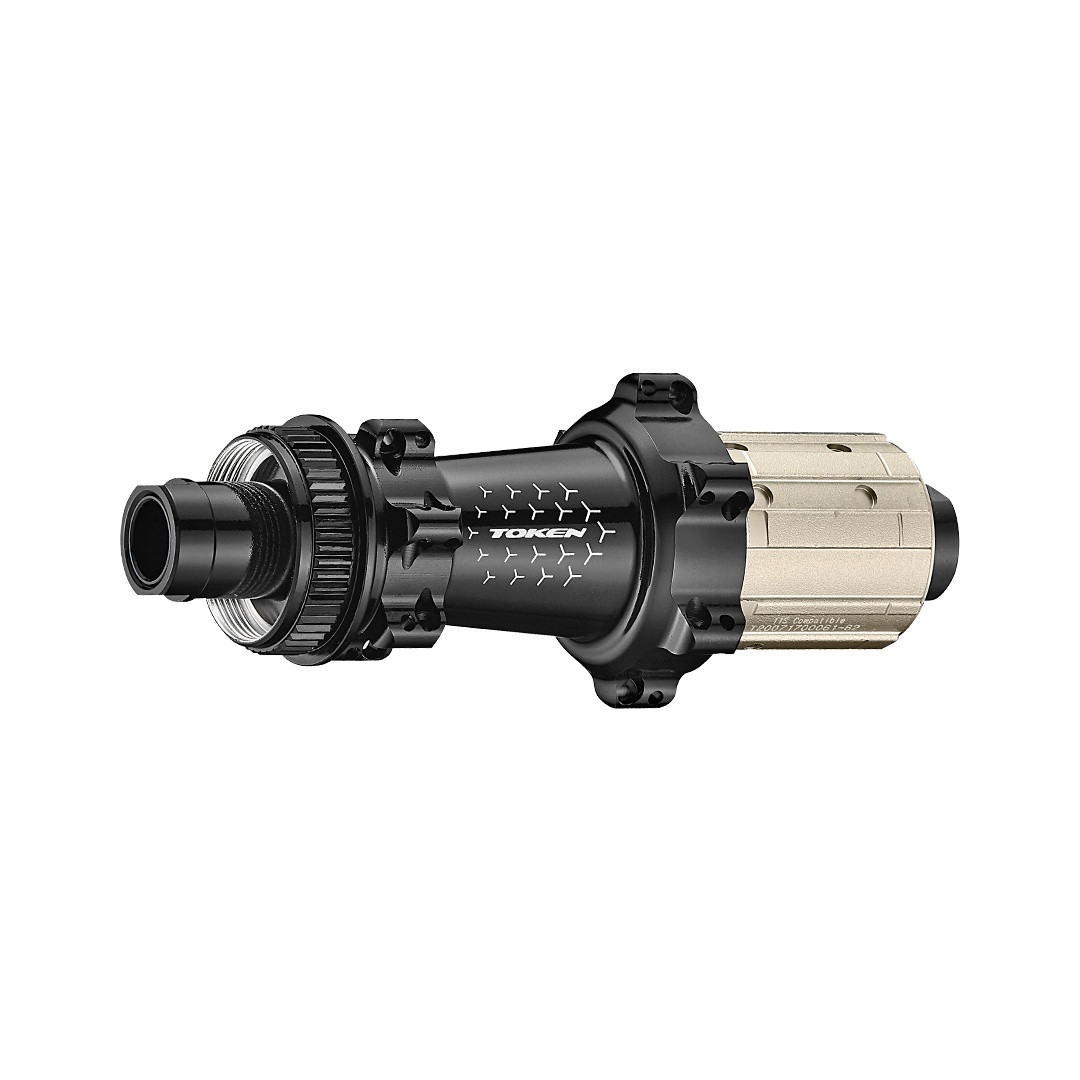

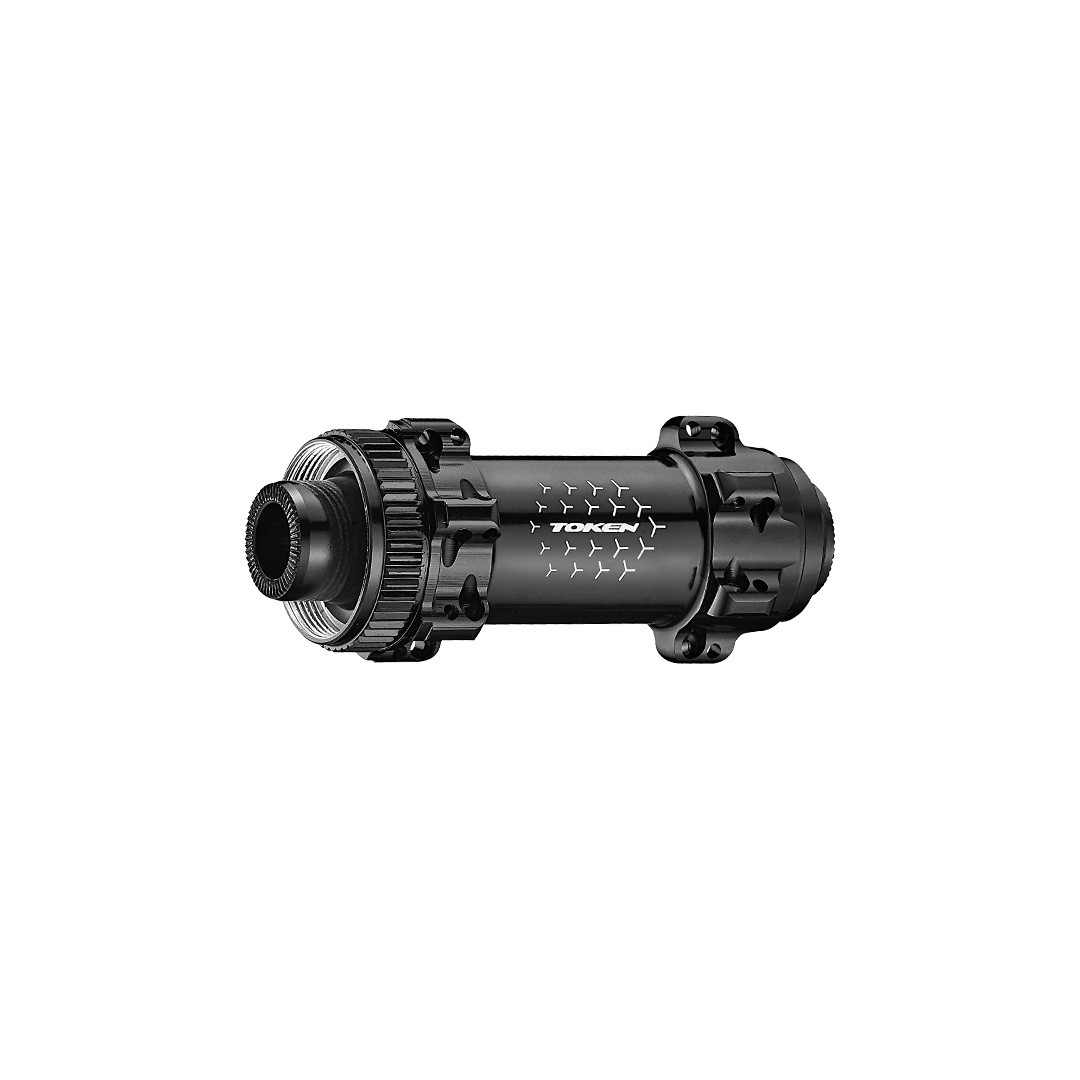

D1 HUBSET
Features:
02
Specs
| Tyre Type | Tubeless Ready |
|---|---|
| Weight | 659 g (f) / 803 g (r), total: 1463 g |
| Rim Diameter | 700c |
| Rim Material | Carbon Fibre |
| Rim Width (External) | 27.2 mm |
| Rim Width (Internal) | 22.6 mm |
| Rim Height | 52.3 mm |
| Nipples | Internal |
| Cassette Compatibility | Shimano HG / SRAM XDR / Campy |
| Spoke Lacing | 2 cross (f) and 2 cross (r) |
| Spoke Count | 24 (f) and 24 (r) |
| Spoke Type | Sapim CX-RAY Straight |
| Hub Type | D1 |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | TBT, Premium |
| Brake Compatibility | Center Lock |
| Spacing | Front: 9 x 100 QR and 12 x 100 mm Thru Axle Rear: 10 x 135 QR and 12 x 142 mm Thru Axle |
| Included Extras | Tubeless Valves |
| Product Code | C52D |
Maximum Tyre Pressure: 72psi (with or without tube)
Recommended Tyre Size: 700x25c - 700x32c
Recommended Weight Limit: 100kg
Recommended Tubeless Road Tyres:
(with approved fitting, safety and performance.)
Continental GP5000 S TR
MAXXIS HIGH ROAD TR
MICHELIN POWER CUP TL READY
PANARACER AGILEST TLR
SCHWALBE PRO ONE TLE
SCHWALBE ONE TLE 700x28C
MAXXIS High Road SL 700x28C
03
Support
USER MANUALS
D1-C52D.pdf
