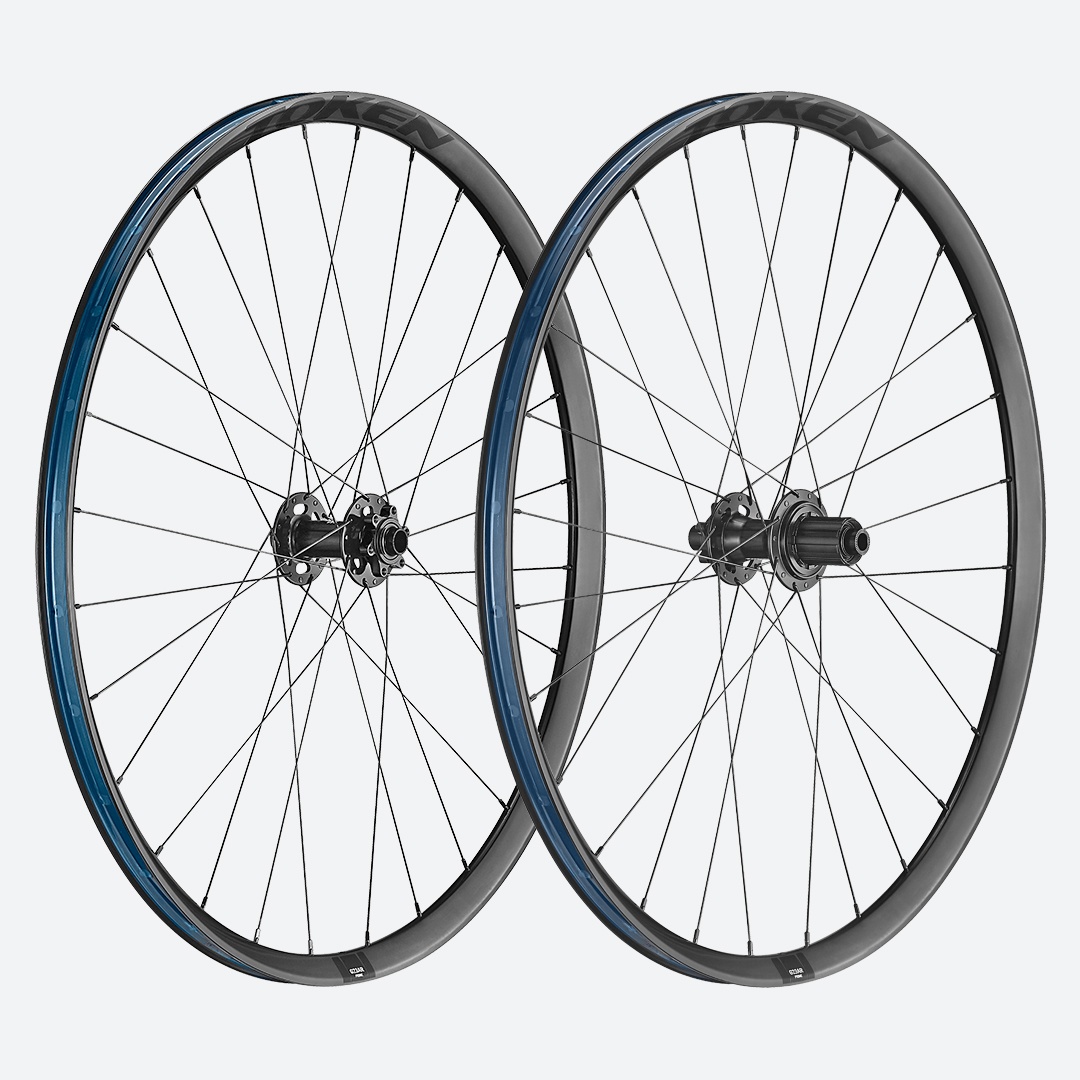

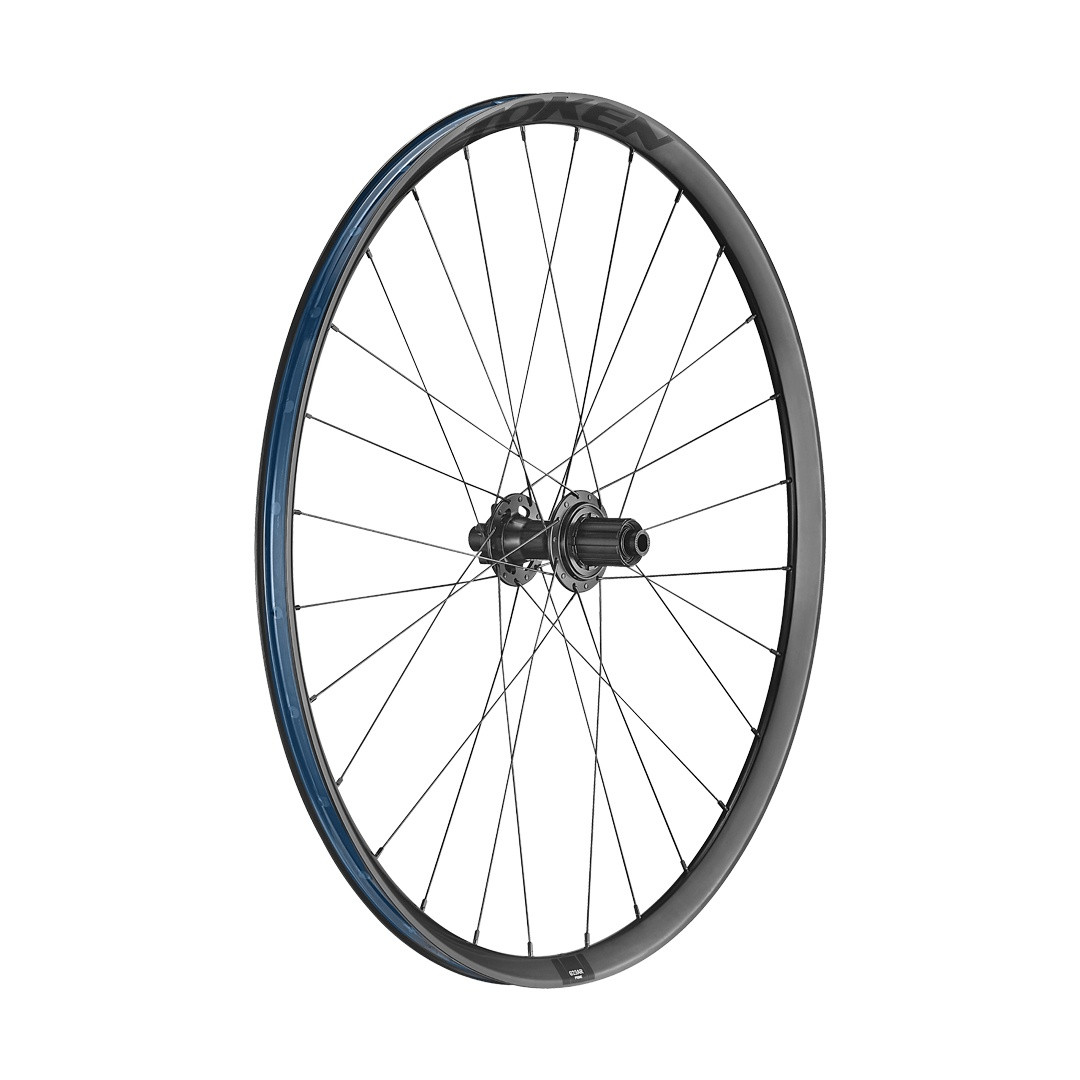

Along with the much-loved RAR wide rim, the new G23AR-B features 28 double-butted spokes and fast-and-tough M1 Boost hub, making the wheelset a MTB-oriented sibling of the original G23AR.
Rim Height
22.5 mm
Tyre Type
Tubeless Ready
Rim Material
Alloy
Bearing Type
Premium
Weight
1,764g
Features:
02
Specs
| Tyre Type | Tubeless Ready |
|---|---|
| Weight | 780 g (f) / 984 g (r), total: 1,764g |
| Rim Material | Alloy |
| Rim Height | 22.5 mm |
| Rim Diameter | 29" |
| Rim Width (Internal) | 23 mm |
| Rim Width (External) | 28 mm |
| Nipples | External |
| Cassette Compatibility | Shimano HG/ Micro Spline / SRAM XD |
| Spoke Lacing | 2 cross (f) and 2 cross (r) |
| Spoke Count | 28 (f) and 28 (r) |
| Spoke Type | Pillar PDB1416 J-bend |

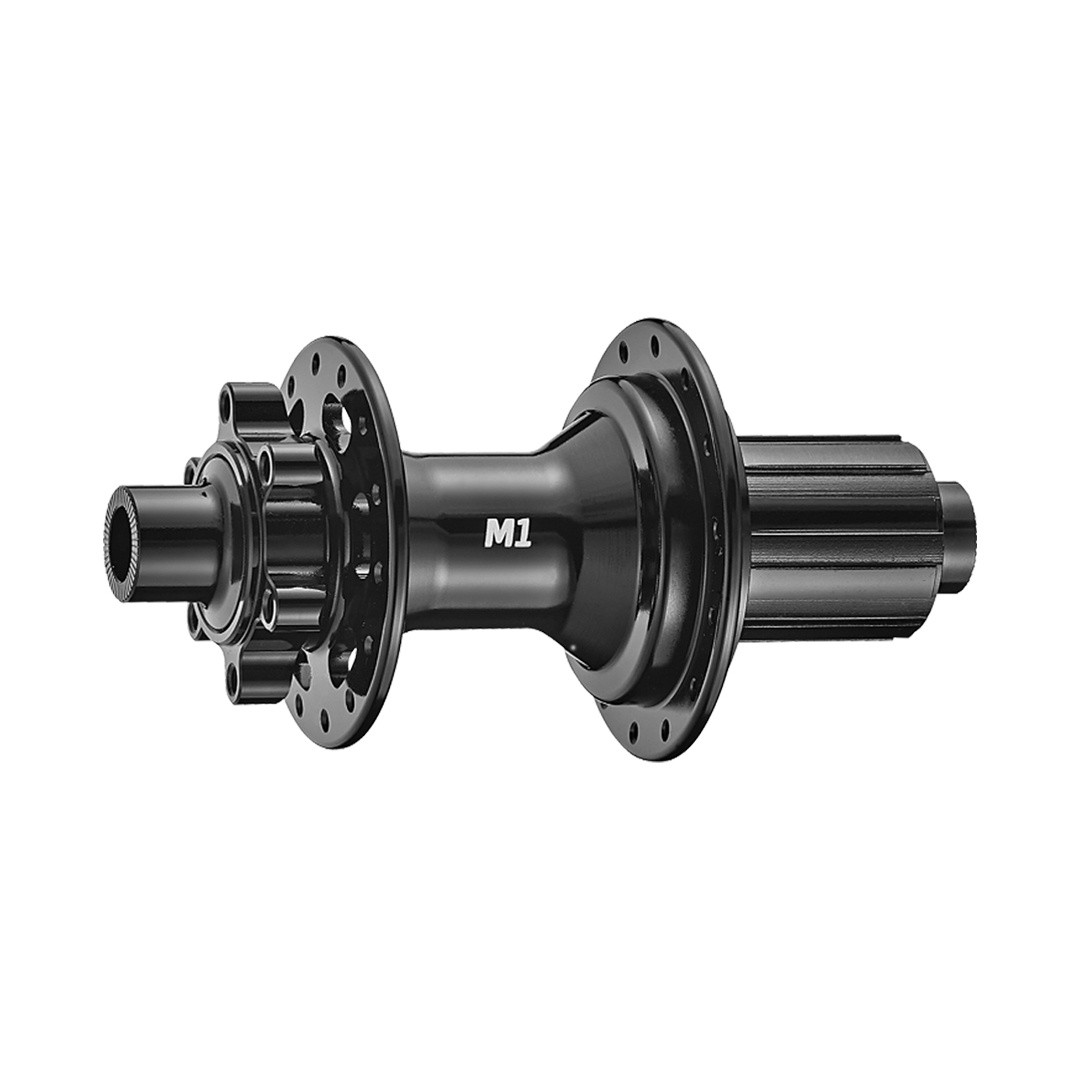

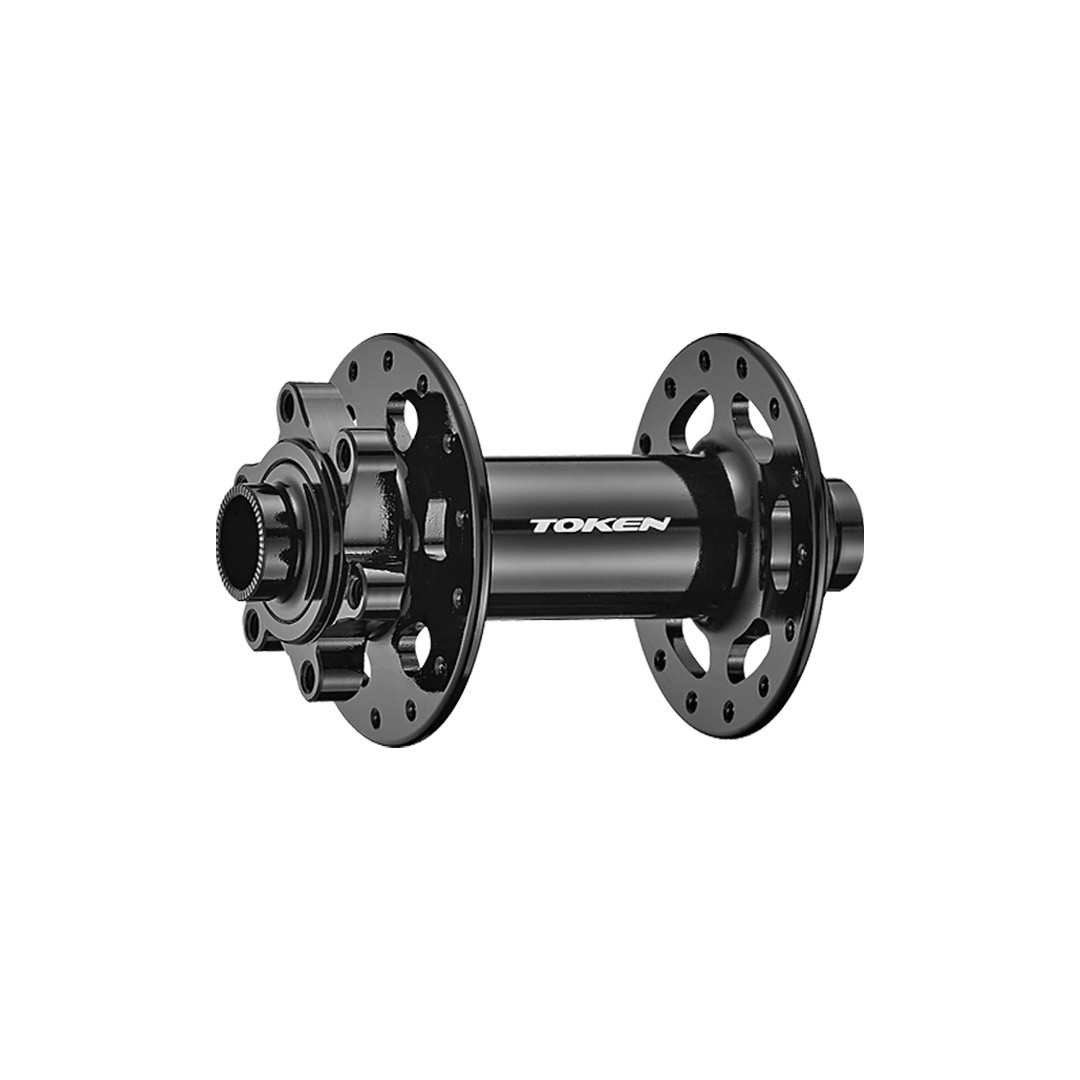

| Hub Type | M1 |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | Premium |
| Brake Compatibility | 6 Bolt |
| Spacing | Front: 15 x 110 mm Thru Axle Rear: 12 x 148 mm Thru Axle |
| Product Code | G23AR-B |
Maximum Tyre Pressure: Follow Tyre Manufacturer's Recommendation
Recommended Tyre Size: 29"x1.9" - 2.35"
Recommended Weight Limit: 100kg
03
Support
USER MANUALS
M1-G23AB_AR-B.pdf
