01
Details

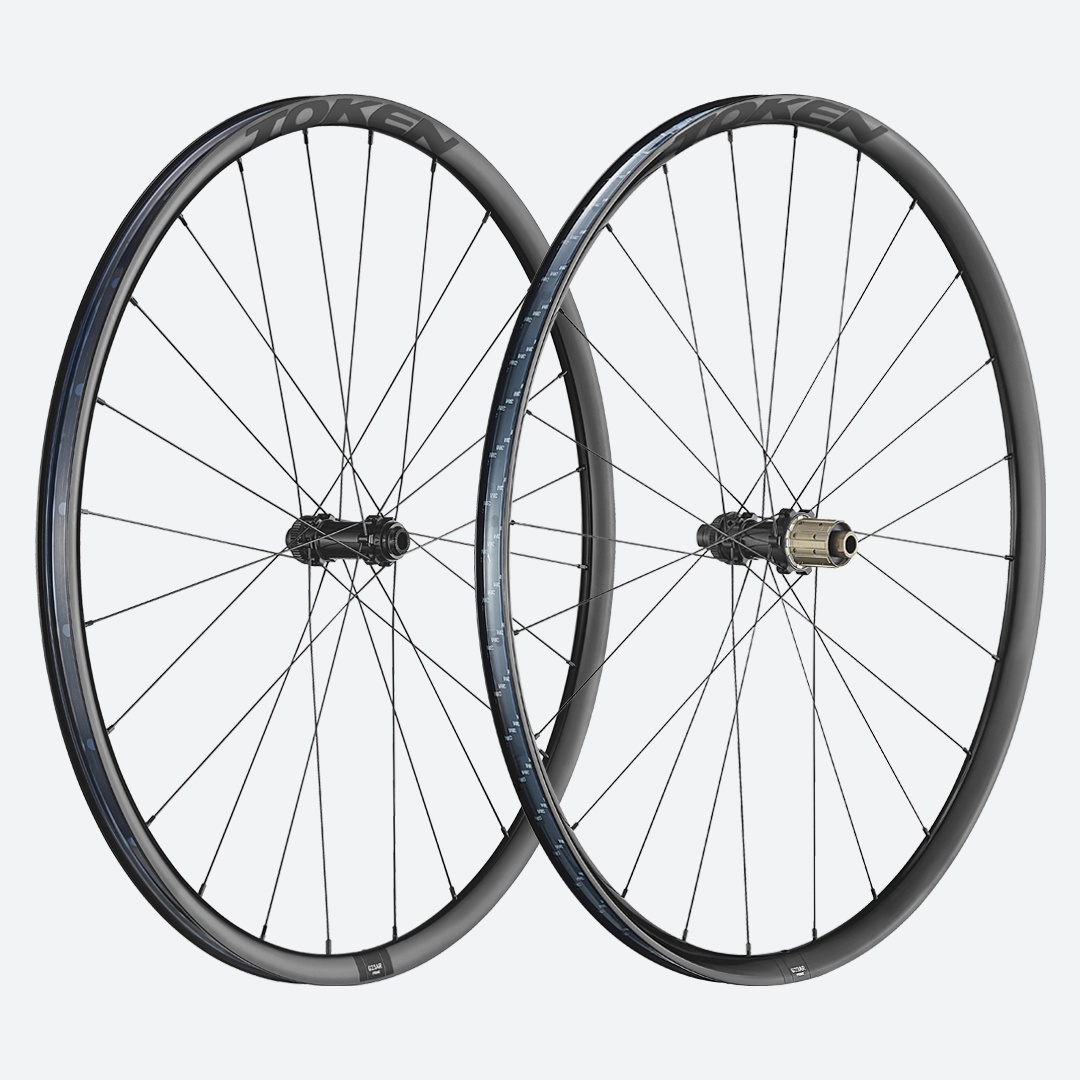

The G23’s new RAR rim is a re-engineered version of our V23 wheelset and is built to withstand tough rides.
We also managed to chop a big chunk of weight off - 300 grams to be exact!

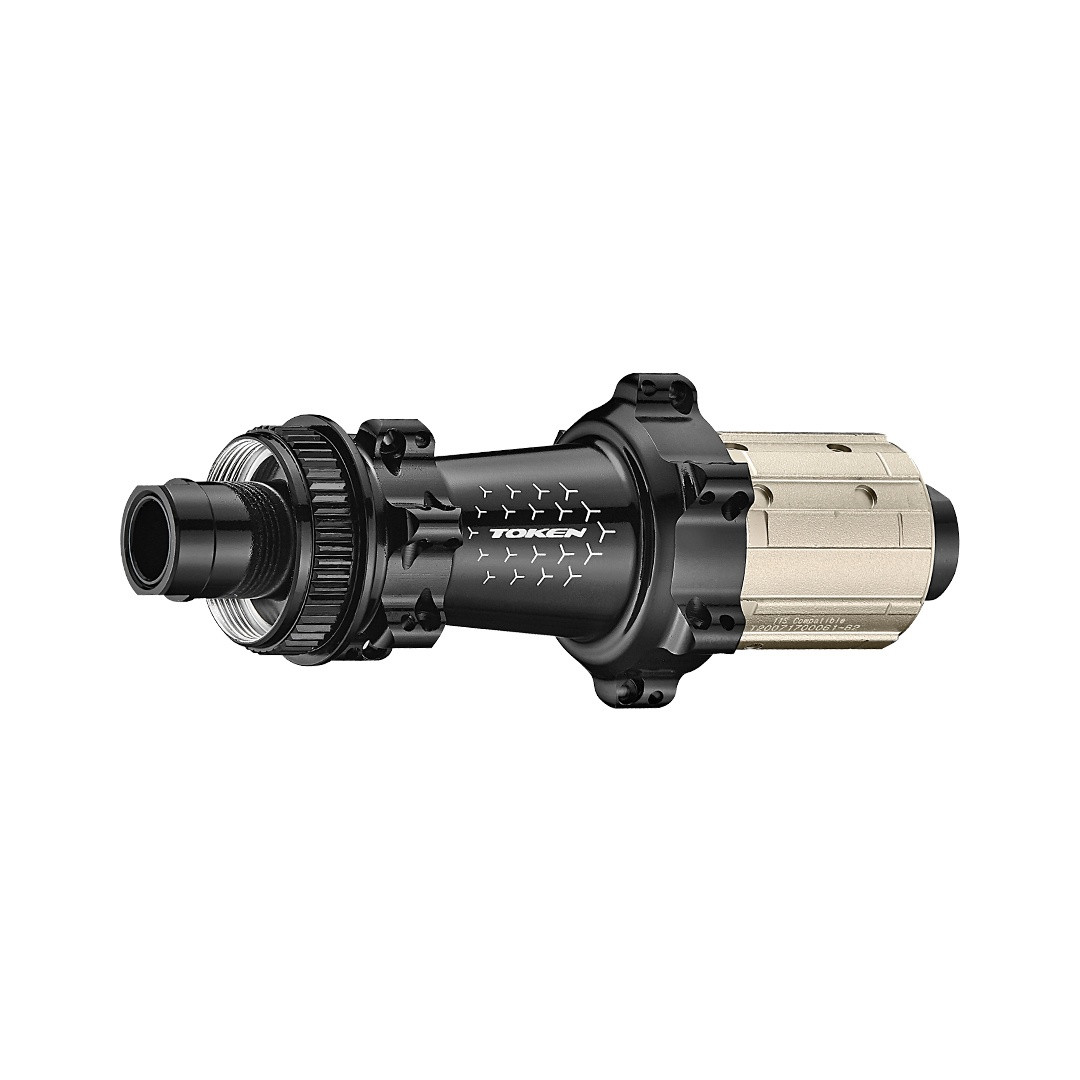

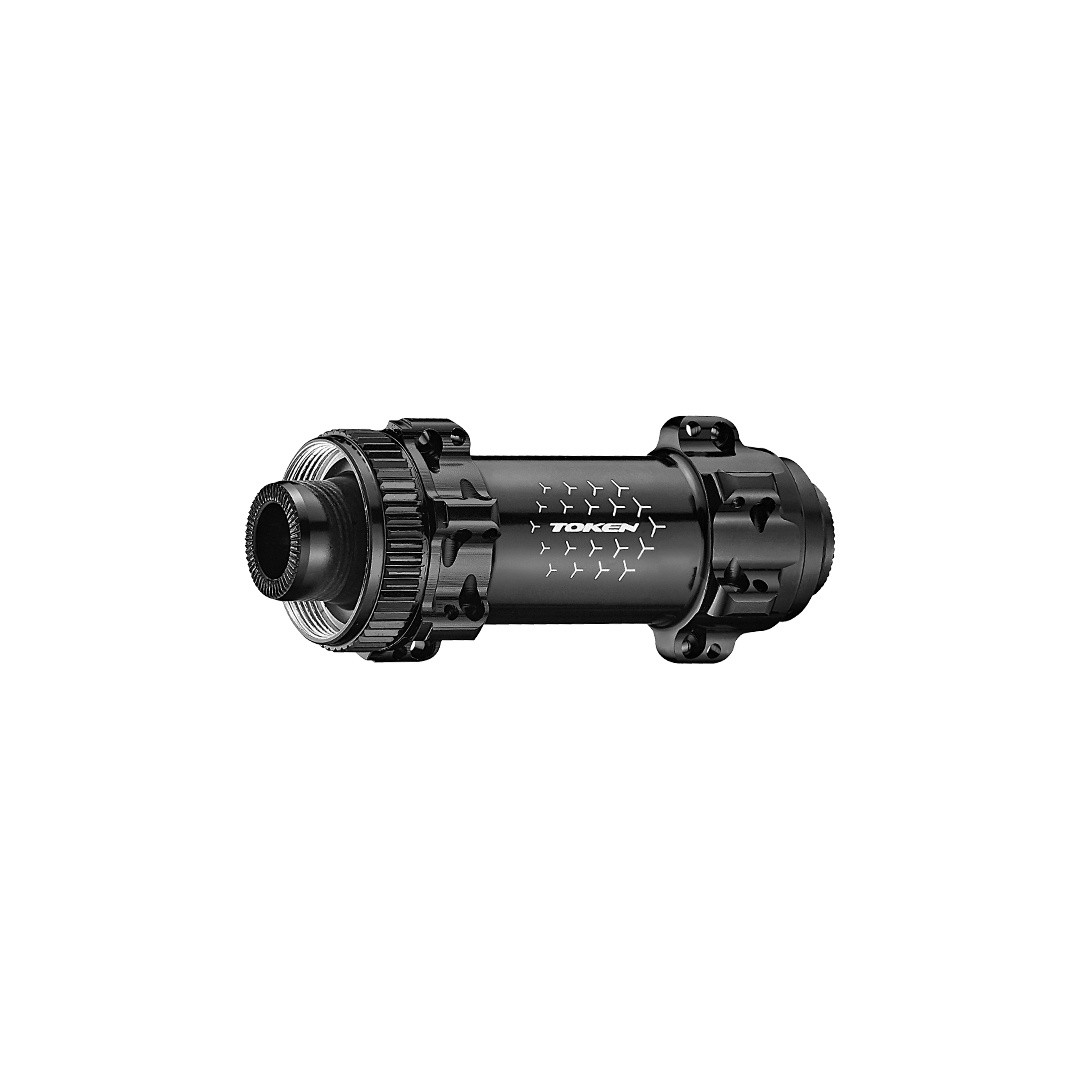

Built with robust D1 hubs and double-butted spokes this light-weight all-road wheelset is a must-have upgrade for any adventure bike.
Rim Height
22.5 mm
Tyre Type
Tubeless Ready
Rim Material
Alloy
Bearing Type
Premium
Weight
1506 g
Features:
02
Specs
| Tyre Type | Tubeless Ready |
|---|---|
| Weight | G23AB: 639 g (f) / 784 g (r), total: 1423 g G23AR: 682 g (f) / 824 g (r), total: 1506 g |
| Rim Diameter | G23AB: 27.5" (650B) G23AR: 29" |
| Rim Material | Alloy |
| Rim Width (External) | 28 mm |
| Rim Width (Internal) | 23 mm |
| Rim Height | 22.5 mm |
| Nipples | External |
| Cassette Compatibility | Shimano HG / SRAM XDR / Campy |
| Spoke Lacing | 2 cross (f) and 2 cross (r) |
| Spoke Count | 24 (f) and 24 (r) |
| Spoke Type | Pillar PDB1416 Staight |
| Hub Type | D1 |
| Bearing Count | 2 (f) and 4 (r) |
| Bearing Type | Premium |
| Brake Compatibility | Center Lock |
| Spacing | Front: 9 x 100 QR and 12 x 100 mm Thru Axle Rear: 10 x 135 QR and 12 x 142 mm Thru Axle |
| Product Code | G23AB G23AR |
Maximum Tyre Pressure: 85psi (700x28c)
Recommended Tyre Size: 700x28c and Above
Recommended Weight Limit: 100kg
03
Reviews
Unboxing from Rei da Montanha
" The new Token 29er boost wheels are the perfect set to complete any bike with a high performance wheel. The set features asymmetrical rims that allow better balance of spoke tensions and a rear hub with 6 couplings, each with 3 steps, rotating in a system with 102 contact points, making the hub fast, strong and with a super cool sound.
An incredible wheel ready for any situation. "
04
Support
USER MANUALS
G23AB-AR-D1.pdf
