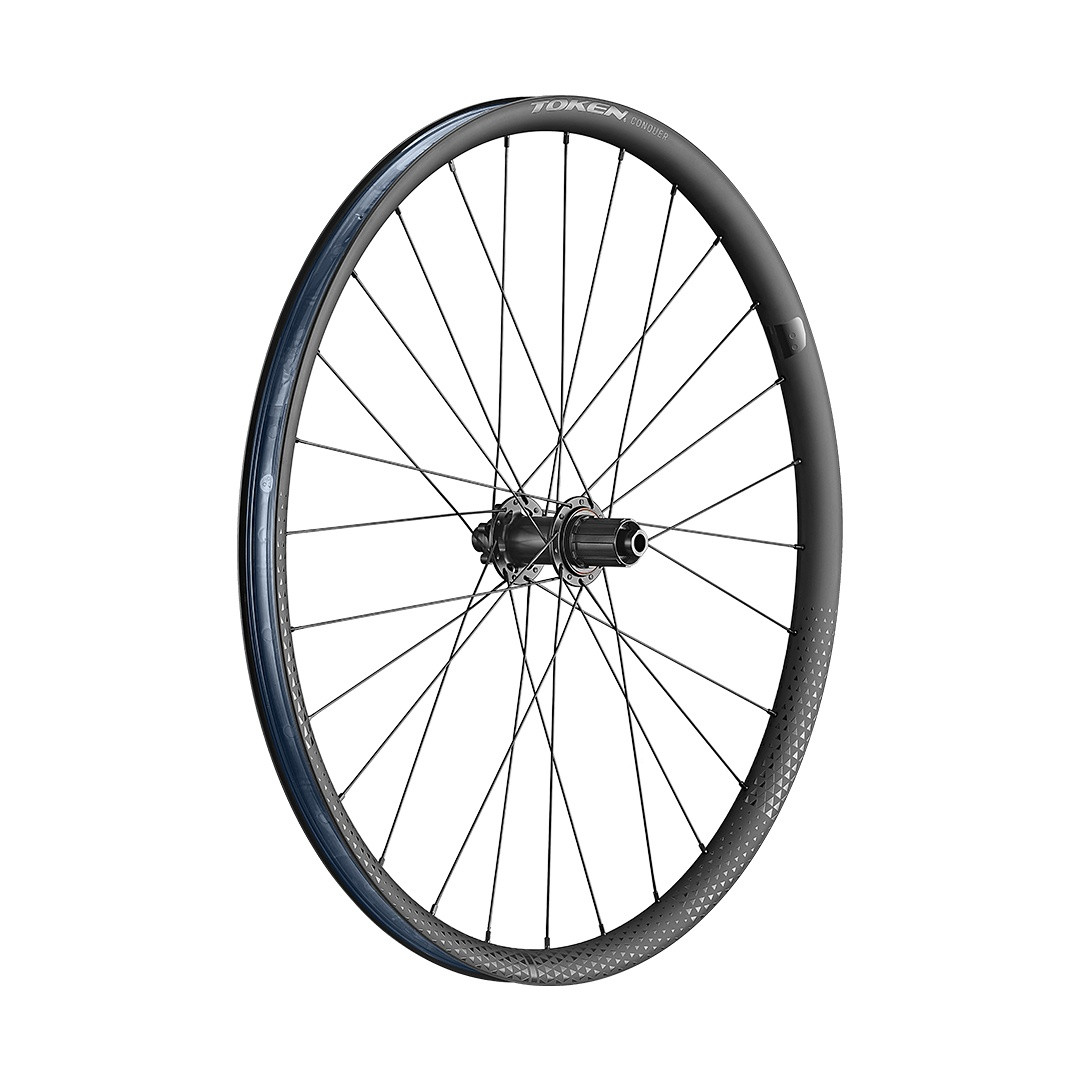

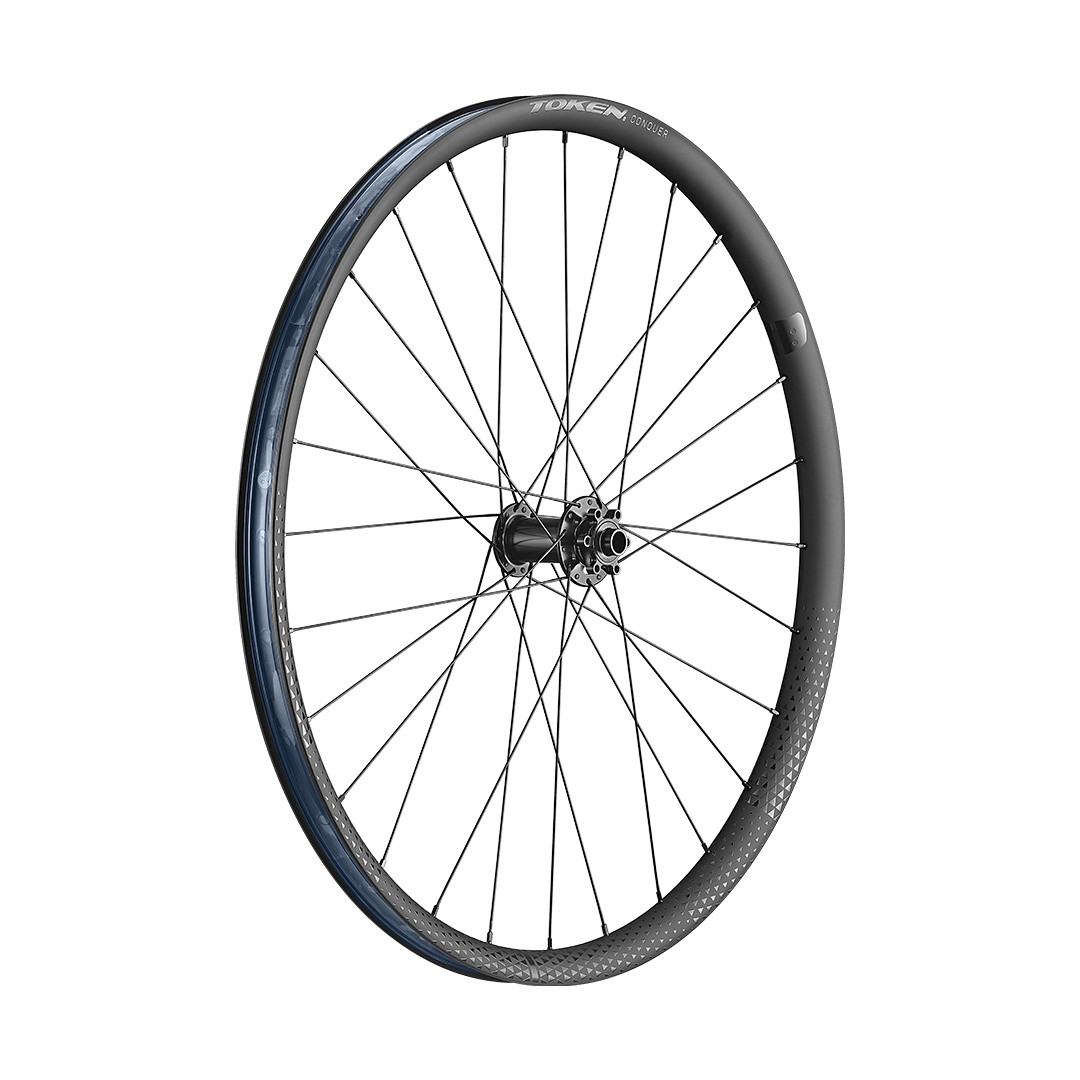

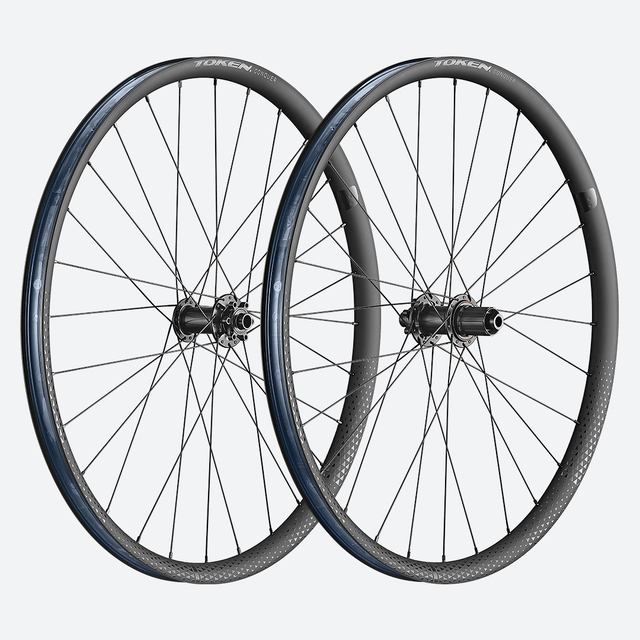

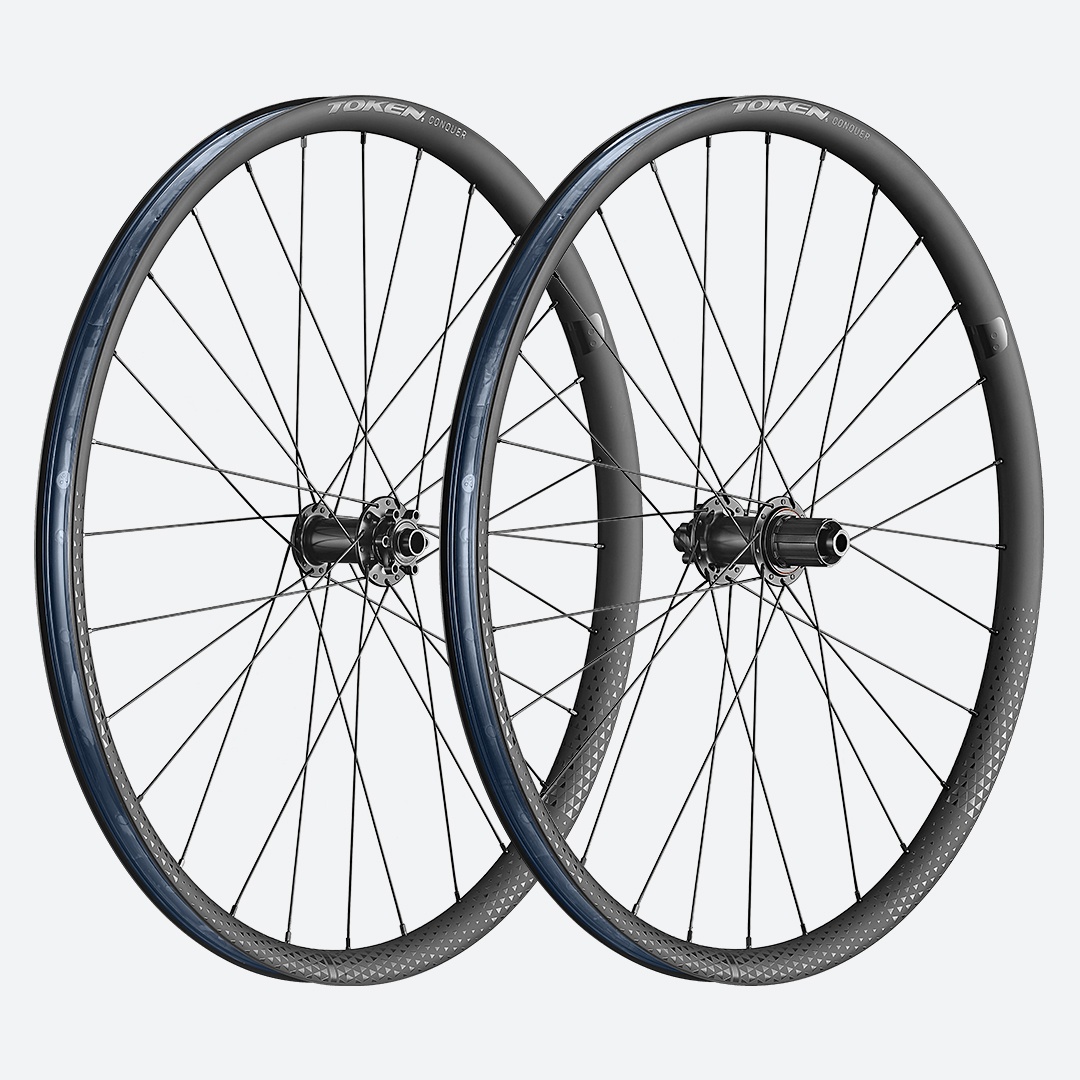

Swift enough for squeezing through your favorite trails, and strong enough for the most extreme terrain. With super wide 30mm hookless rim, quick-engagement X1 hub and non-proprietary stainless-steel spokes, the Conquer is always ready for your next challenge.
Rim Height
25mm mm
Tyre Type
Tubeless Ready
Rim Material
Carbon Fibre
Bearing Type
Premium
Weight
1688 g
02
Specs
Tyre Type | Tubeless Ready |
---|---|
Weight | 762 g (f) / 926 g (r), total: 1688 g |
Rim Material | Carbon Fibre |
Rim Height | 25mm mm |
Rim Diameter | 29" |
Rim Width (Internal) | 30mm mm |
Rim Width (External) | 36mm mm |
Nipples | External |
Cassette Compatibility | Shimano HG / Micro Spline / SRAM XD |
Spoke Lacing | 2cross (f) and 2 cross (r) |
Spoke Count | 28 (f) and 28 (r) |
Spoke Type | Pillar PDB1416 J-bend |
Hub Type | M1X |
Bearing Count | 2 (f) and 4 (r) |
Bearing Type | Premium |
Brake Compatibility | 6 Bolt |
Spacing | Front: 15 x 110 mm Thru Axle Rear: 12 x 148 mm Thru Axle |
Product Code | MXC30 |
Maximum Tyre Pressure: Follow Tyre Manufacturer's Recommendation
Recommended Tyre Size: 29"x2.1" - 3.0"
Recommended Weight Limit: 100kg
03
Support
USER MANUALS
CONQUER(MXC30).pdf
